CSIEM Report Card: Mooring Validation — Dissolved Oxygen & Density Anomaly

Model version CSIEM-1.7.0 — Comparison of modelled vs observed depth-time profiles of dissolved oxygen and density anomaly at mooring stations within Cockburn Sound, 2021. Each panel shows observed data (top) and CSIEM prediction (bottom).

← Back to Chapter 9: Hydrodynamics
CS4 Desal CS13 CS11

Select Month

Jan 2021
Feb 2021
Mar 2021
Apr 2021
May 2021
Jun 2021
Jul 2021
Aug 2021
Sep 2021
Oct 2021
Nov 2021
Dec 2021

CS4 Buoy (North)

Northern Cockburn Sound — DWER CS4 mooring

Dissolved Oxygen (mg/L)

No data for Jan 2021
No data for Feb 2021

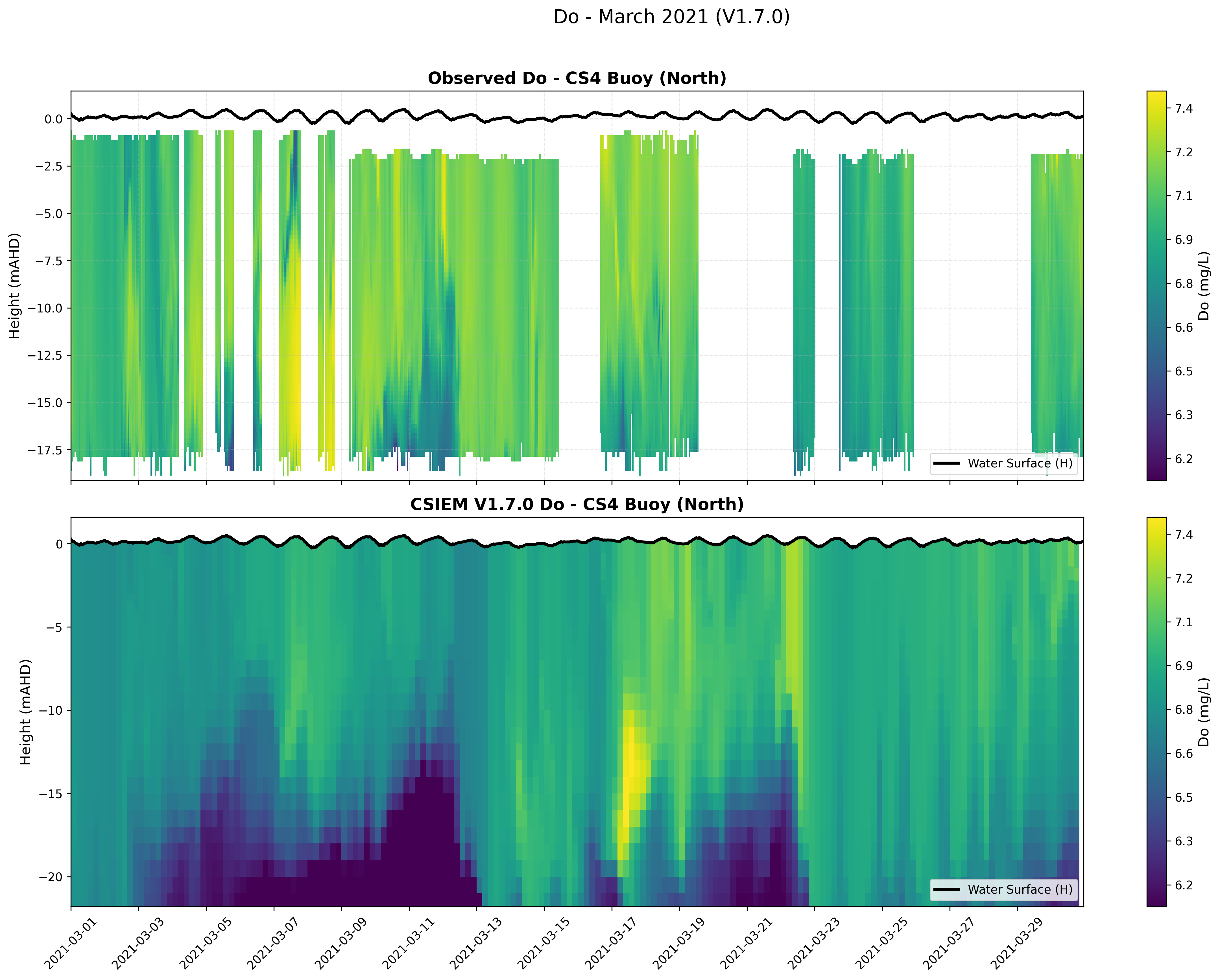

CS4 Buoy (North) — Dissolved Oxygen — Mar 2021

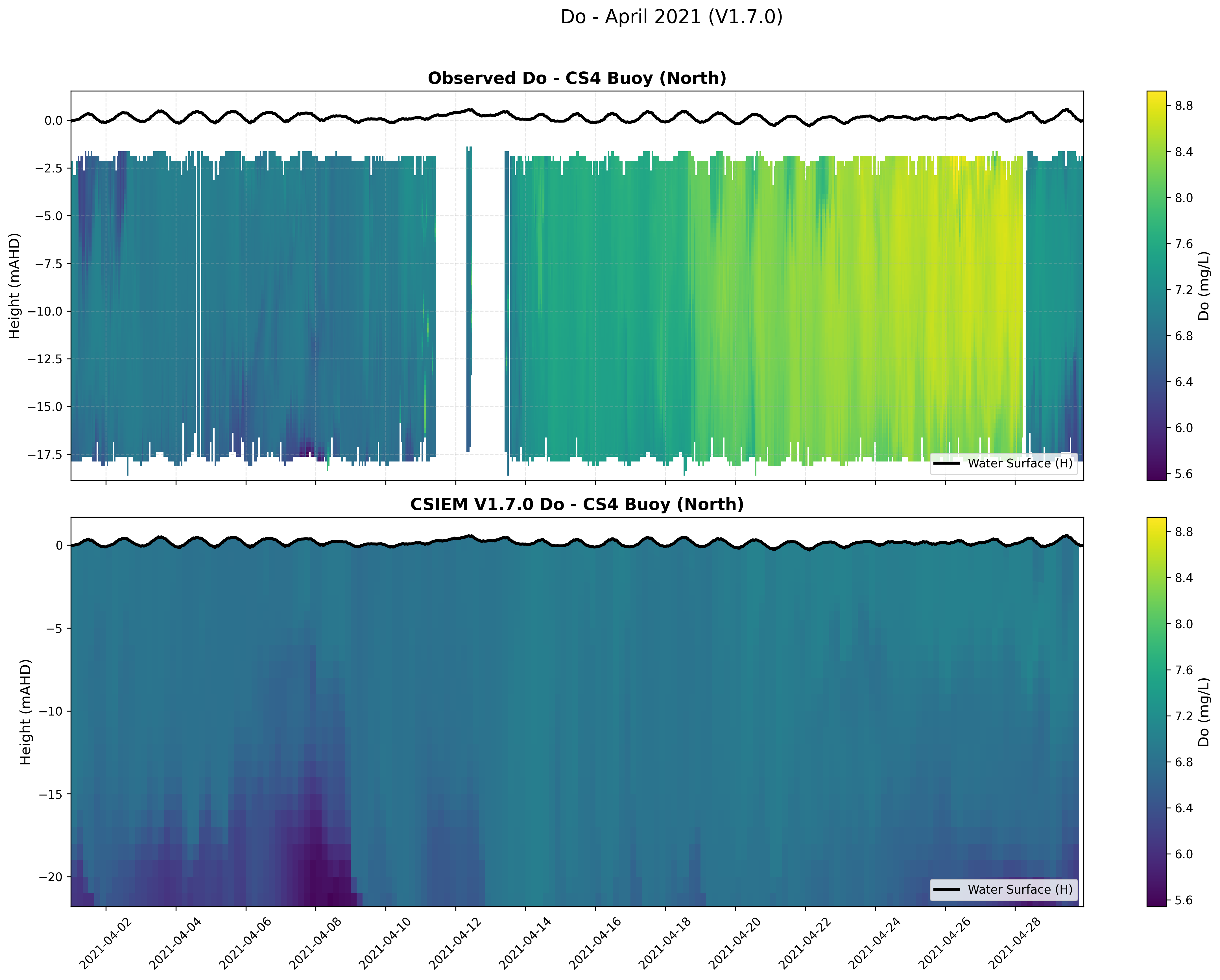

CS4 Buoy (North) — Dissolved Oxygen — Apr 2021
No data for May 2021
No data for Jun 2021
No data for Jul 2021

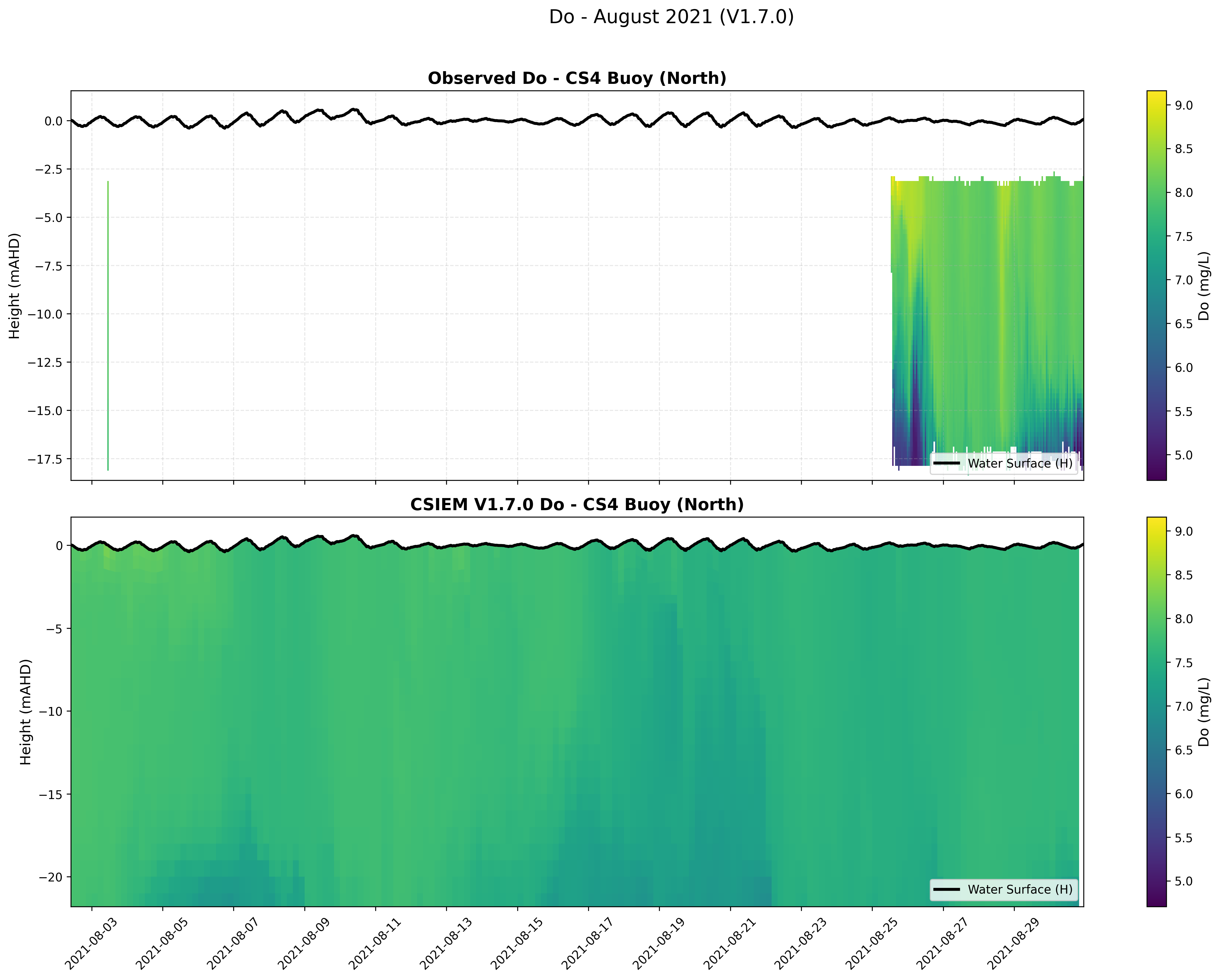

CS4 Buoy (North) — Dissolved Oxygen — Aug 2021

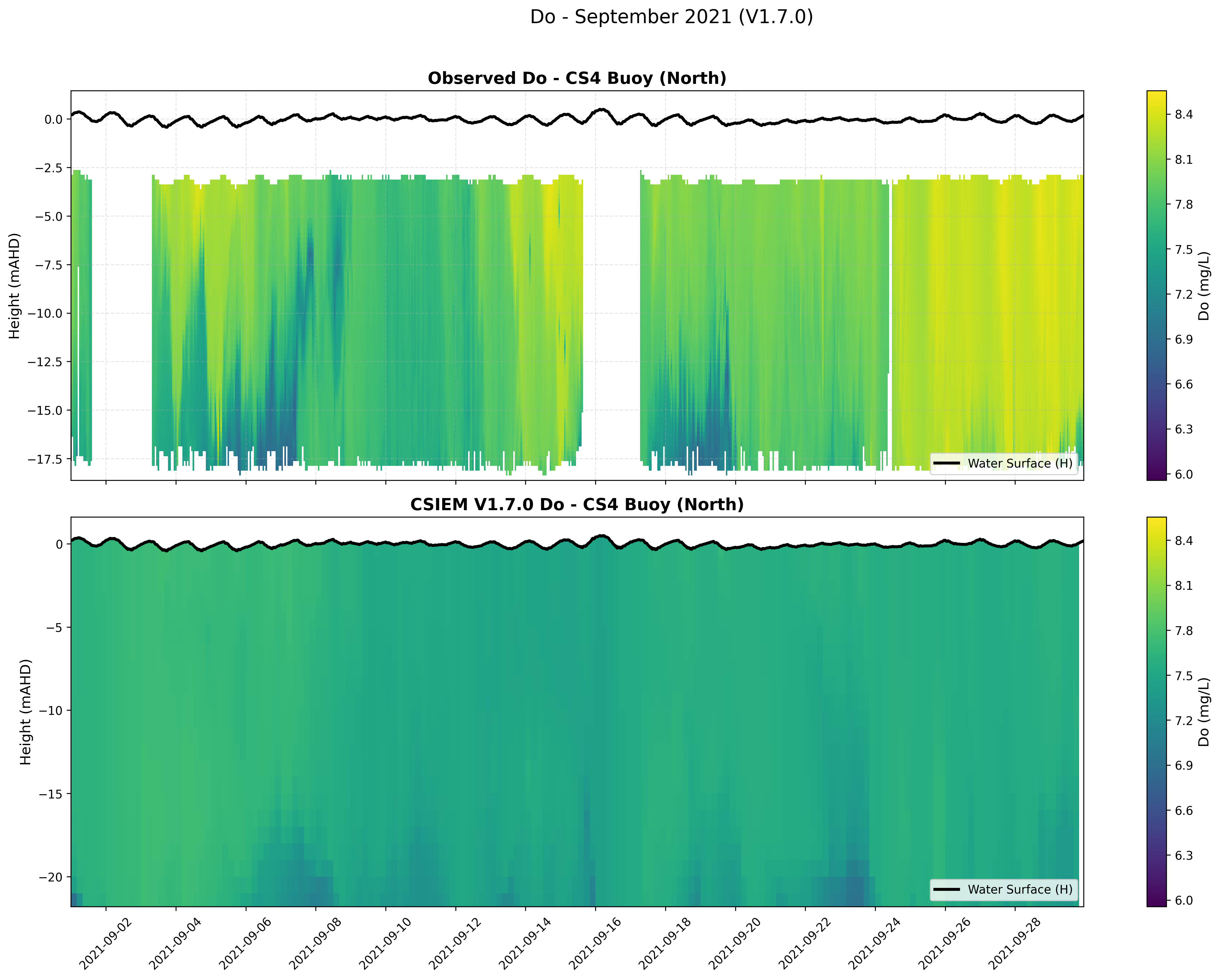

CS4 Buoy (North) — Dissolved Oxygen — Sep 2021

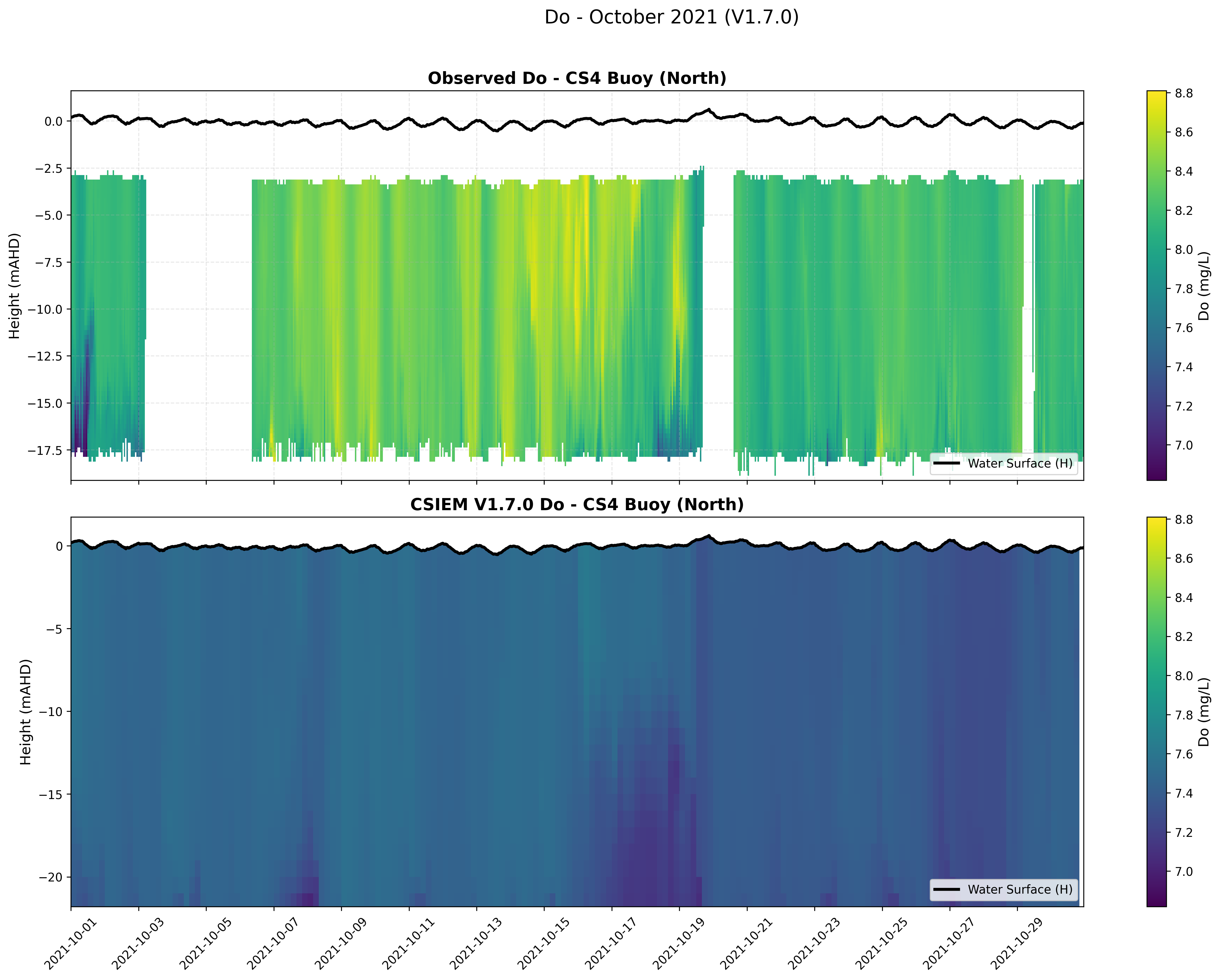

CS4 Buoy (North) — Dissolved Oxygen — Oct 2021
No data for Nov 2021
No data for Dec 2021

Density Anomaly (kg/m³)

No data for Jan 2021

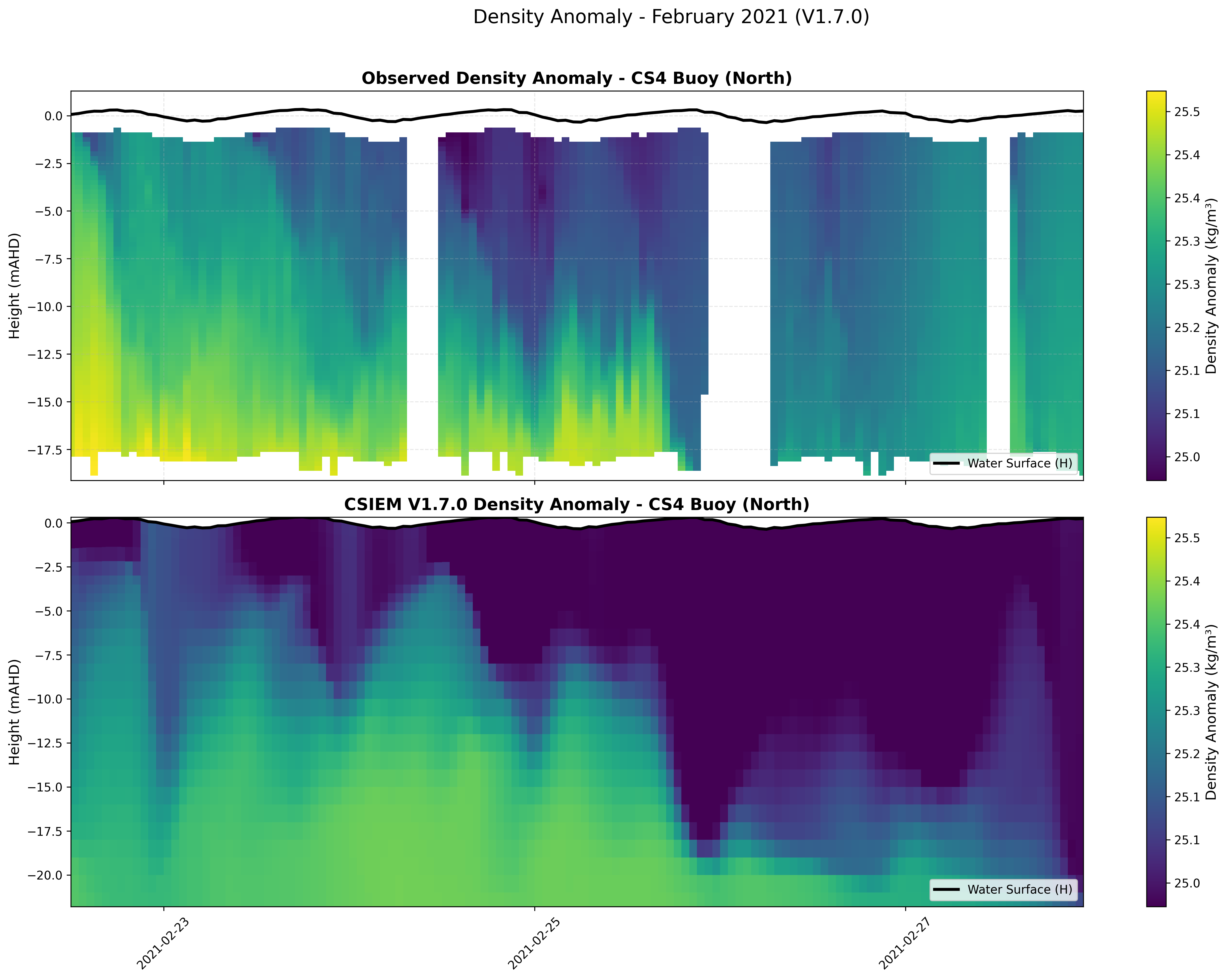

CS4 Buoy (North) — Density Anomaly — Feb 2021

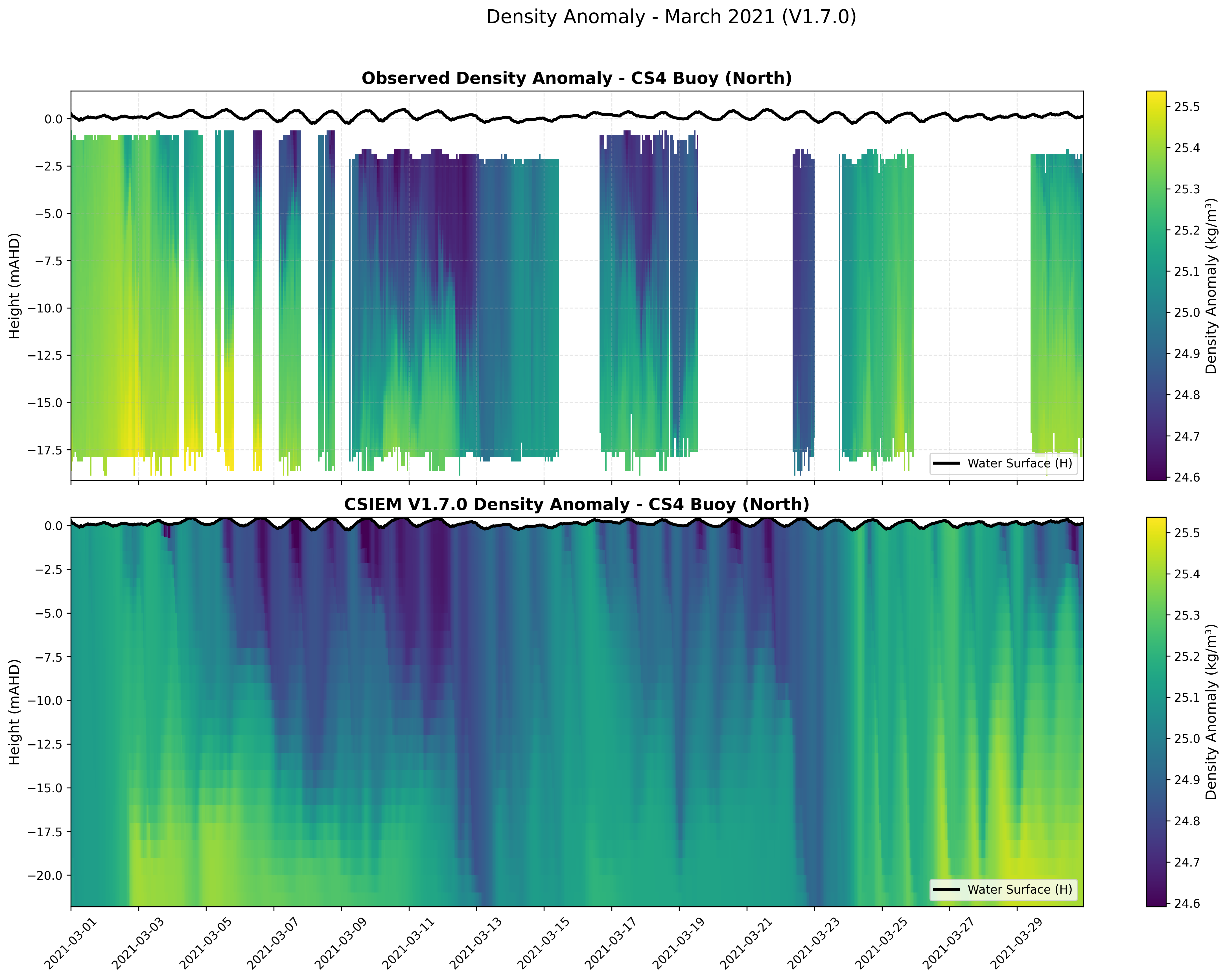

CS4 Buoy (North) — Density Anomaly — Mar 2021

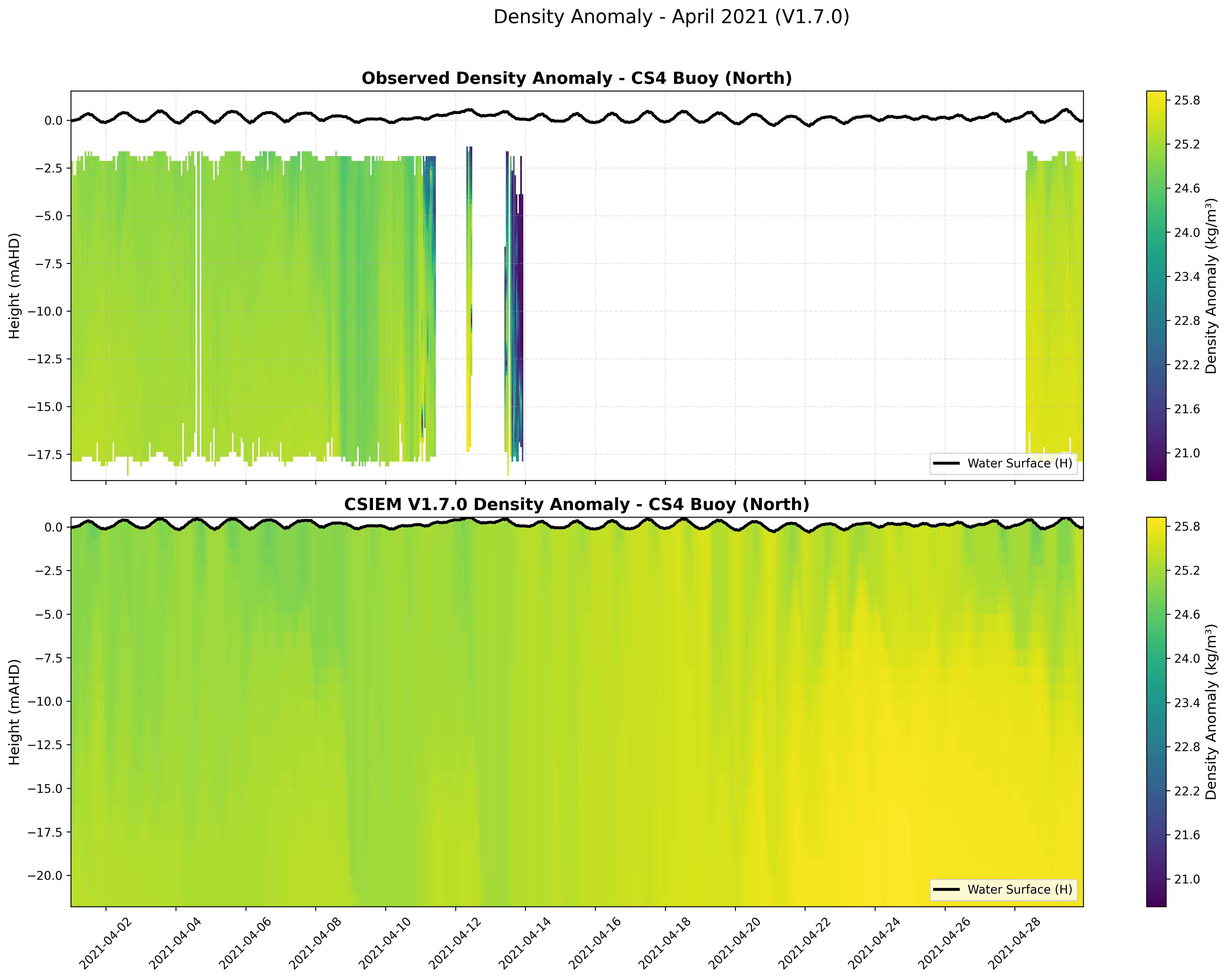

CS4 Buoy (North) — Density Anomaly — Apr 2021

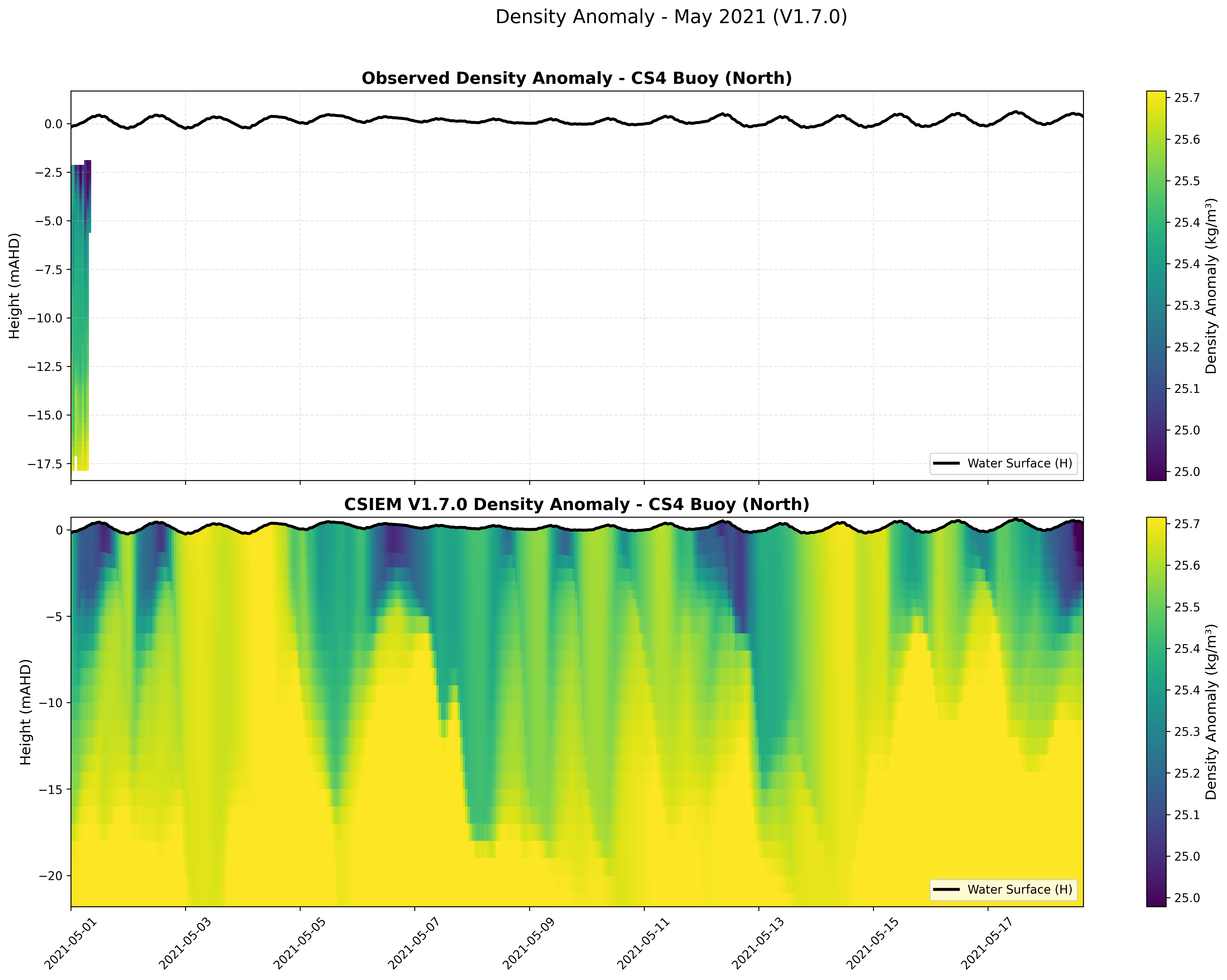

CS4 Buoy (North) — Density Anomaly — May 2021
No data for Jun 2021
No data for Jul 2021
No data for Aug 2021

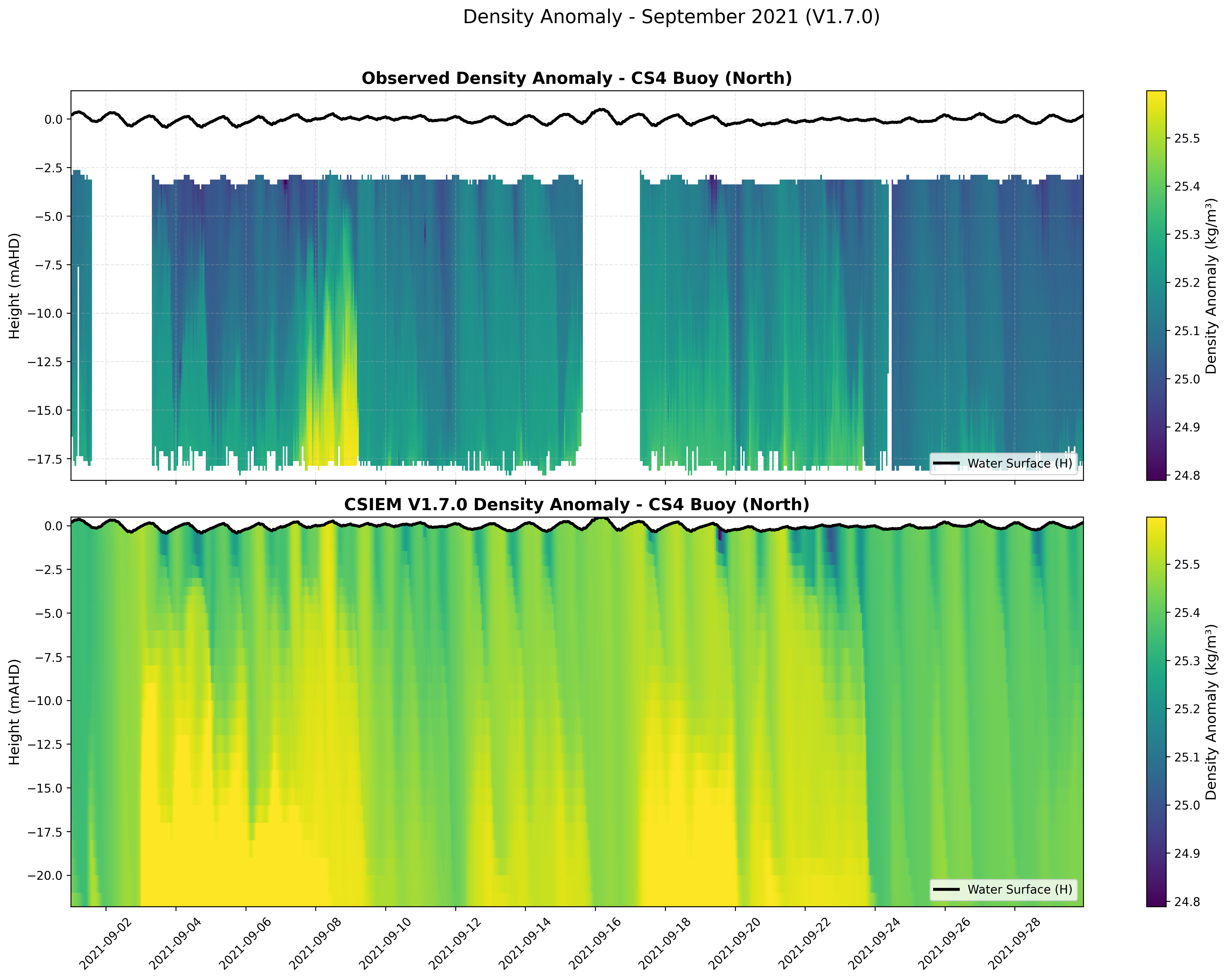

CS4 Buoy (North) — Density Anomaly — Sep 2021

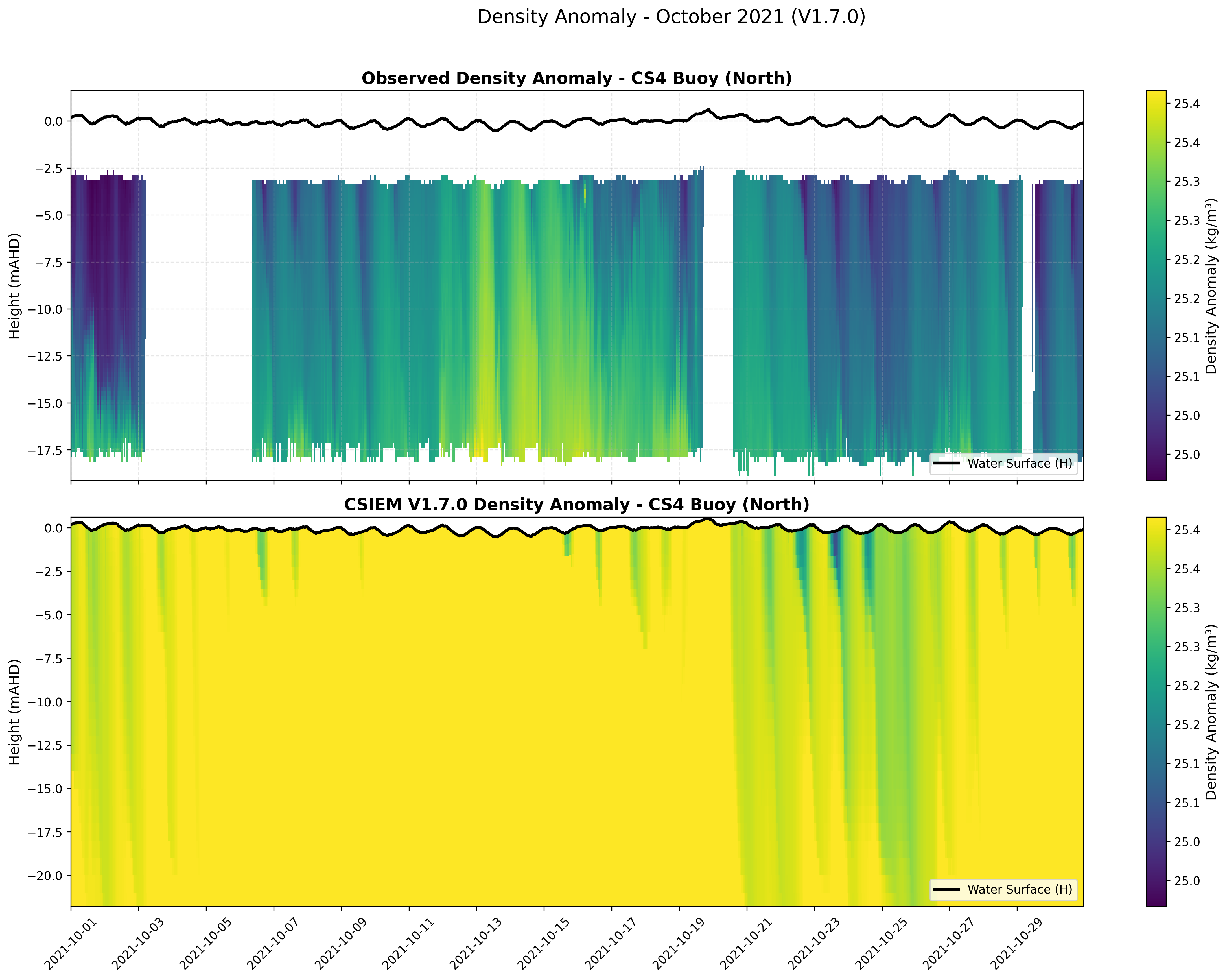

CS4 Buoy (North) — Density Anomaly — Oct 2021
No data for Nov 2021
No data for Dec 2021

Desalination Site

Mid Cockburn Sound — near Kwinana desalination outfall

Dissolved Oxygen (mg/L)

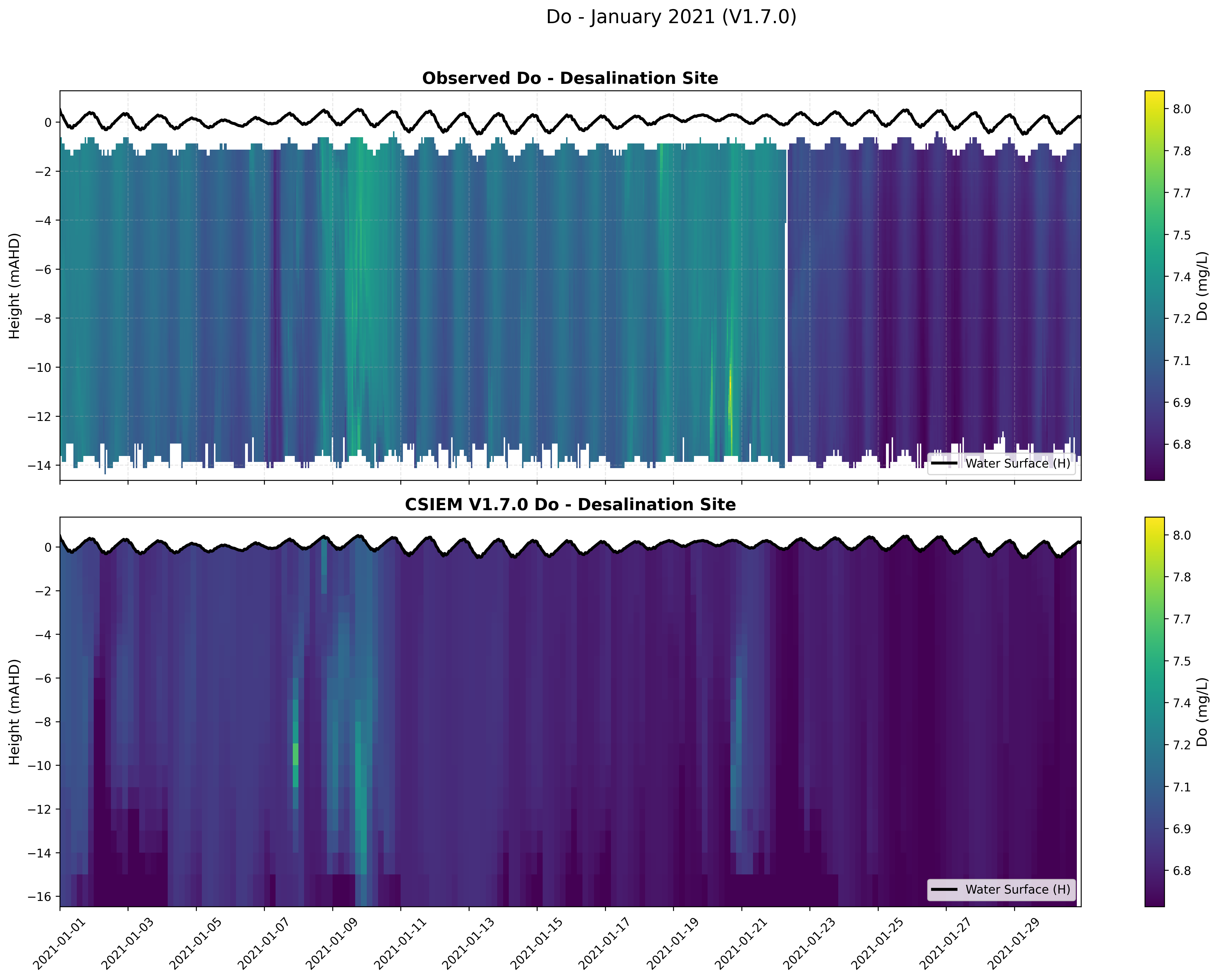

Desalination Site — Dissolved Oxygen — Jan 2021
No data for Feb 2021

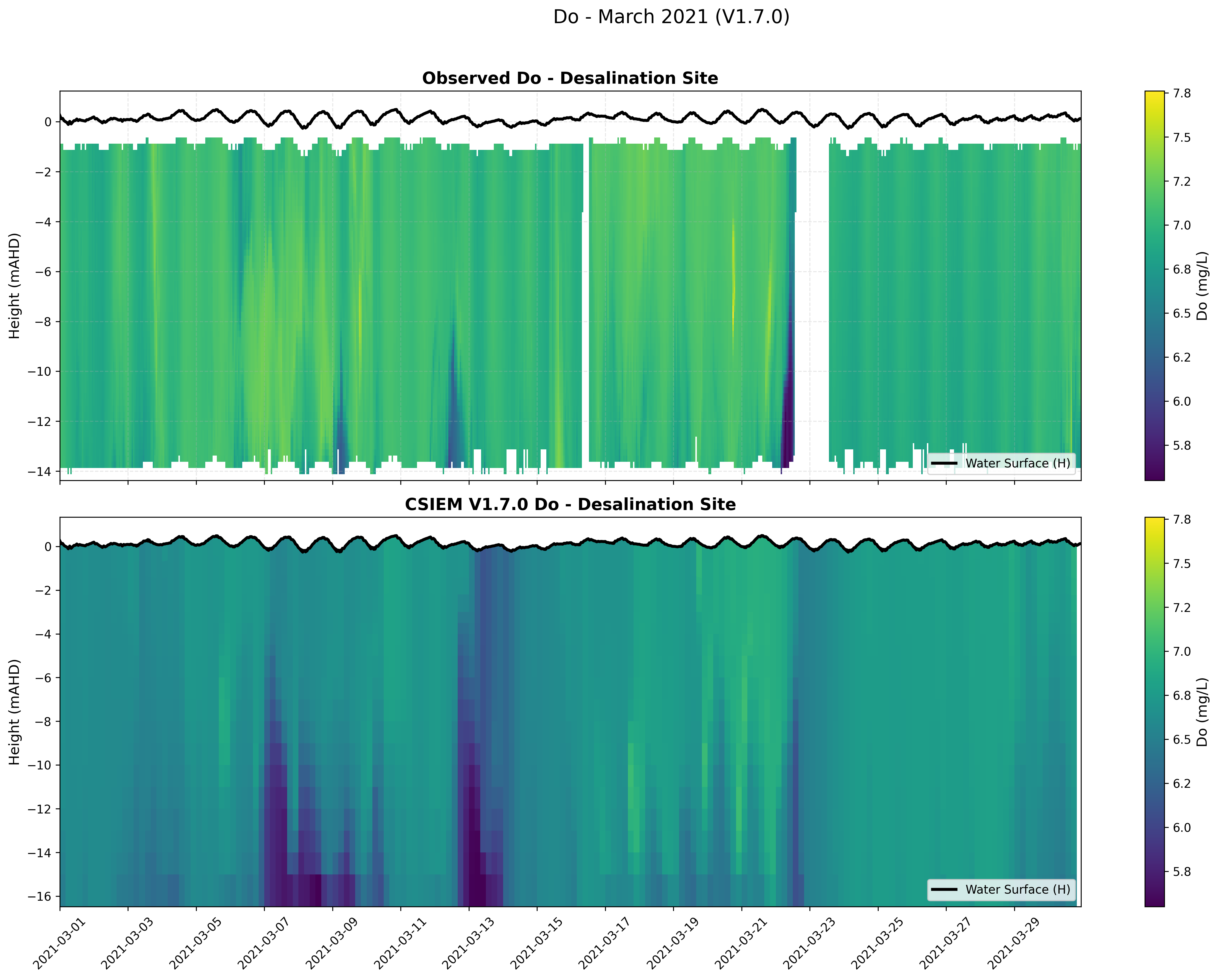

Desalination Site — Dissolved Oxygen — Mar 2021
Desalination Site — Dissolved Oxygen — Apr 2021

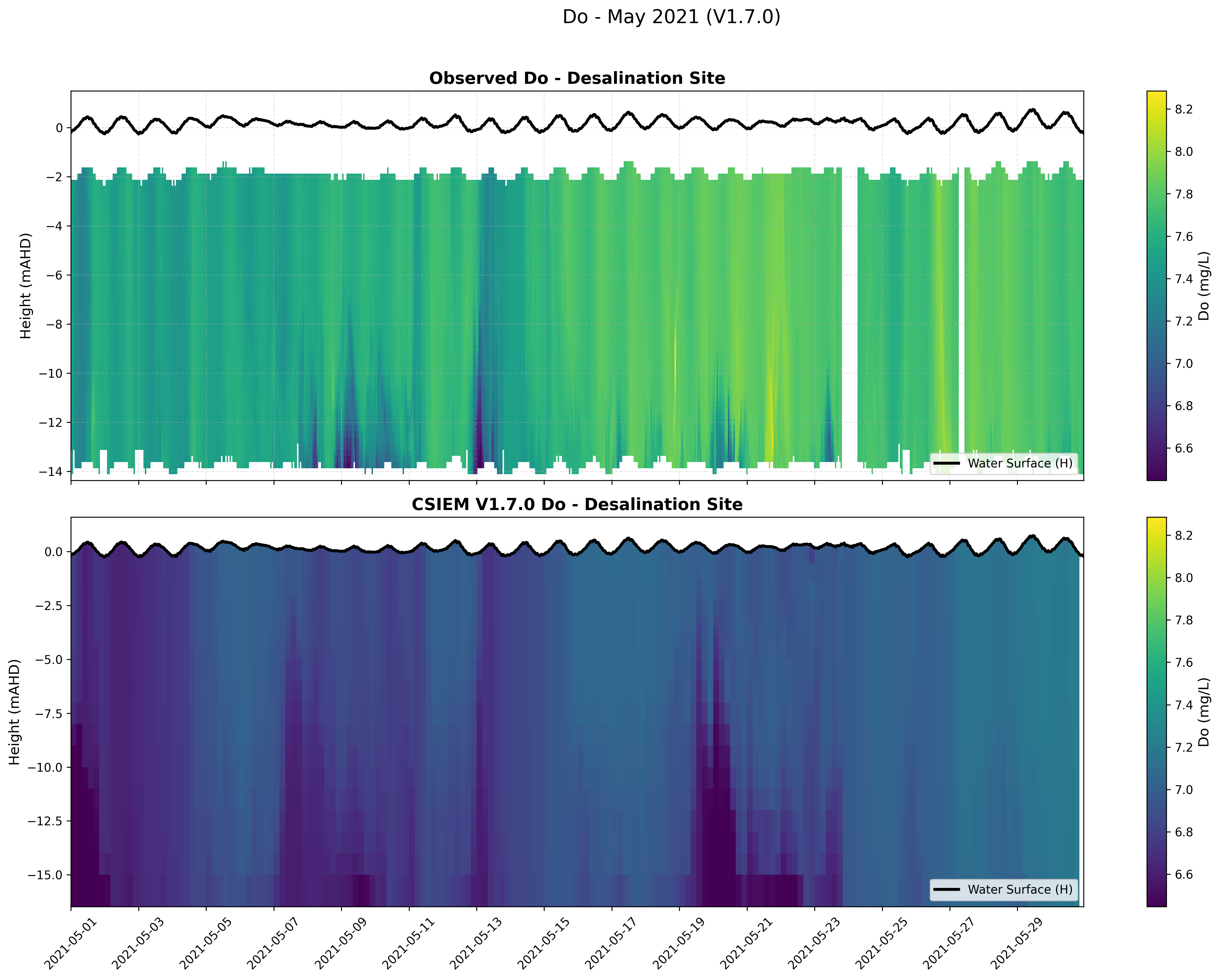

Desalination Site — Dissolved Oxygen — May 2021
No data for Jun 2021
No data for Jul 2021
No data for Aug 2021

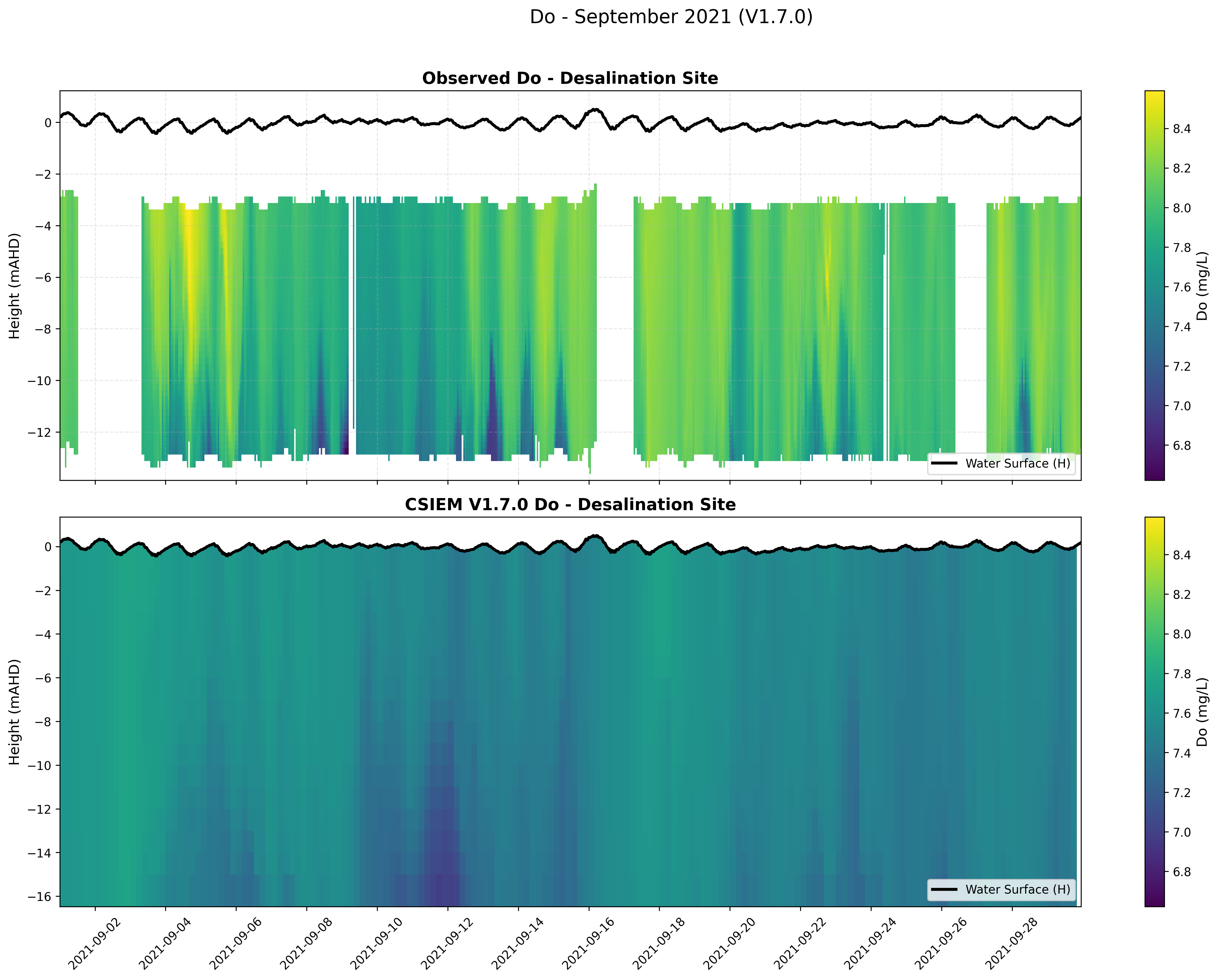

Desalination Site — Dissolved Oxygen — Sep 2021
No data for Oct 2021
No data for Nov 2021
No data for Dec 2021

Density Anomaly (kg/m³)

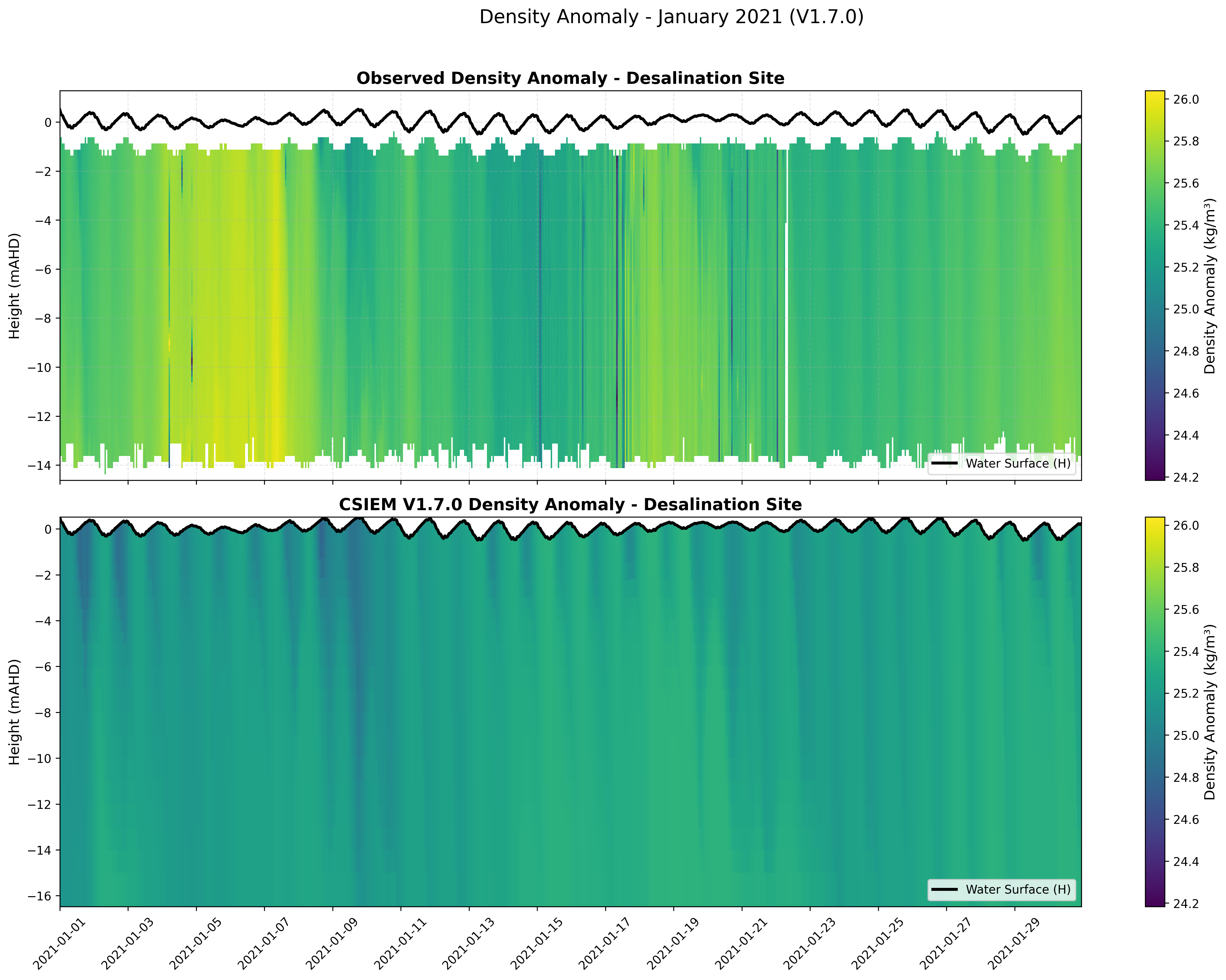

Desalination Site — Density Anomaly — Jan 2021
No data for Feb 2021

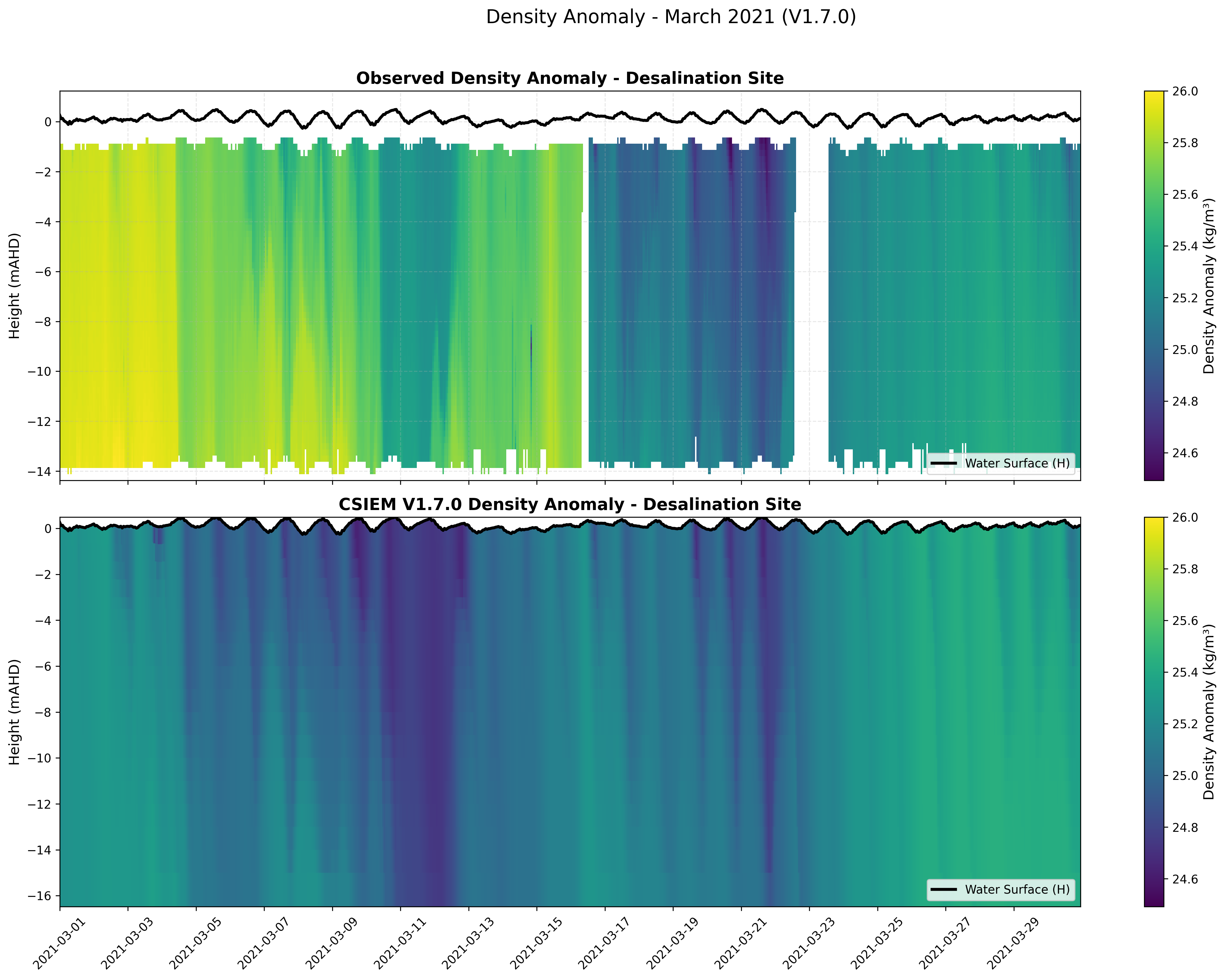

Desalination Site — Density Anomaly — Mar 2021

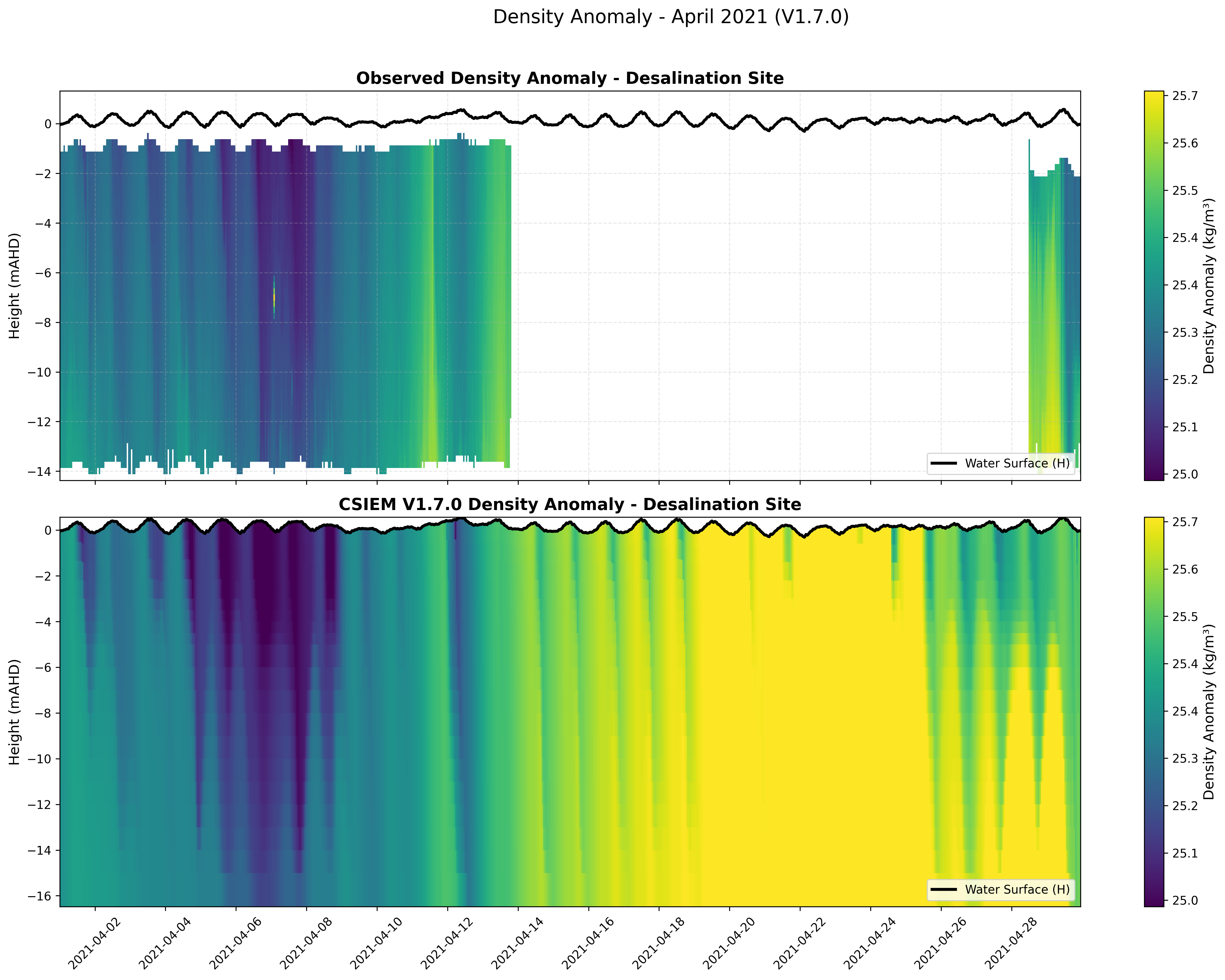

Desalination Site — Density Anomaly — Apr 2021

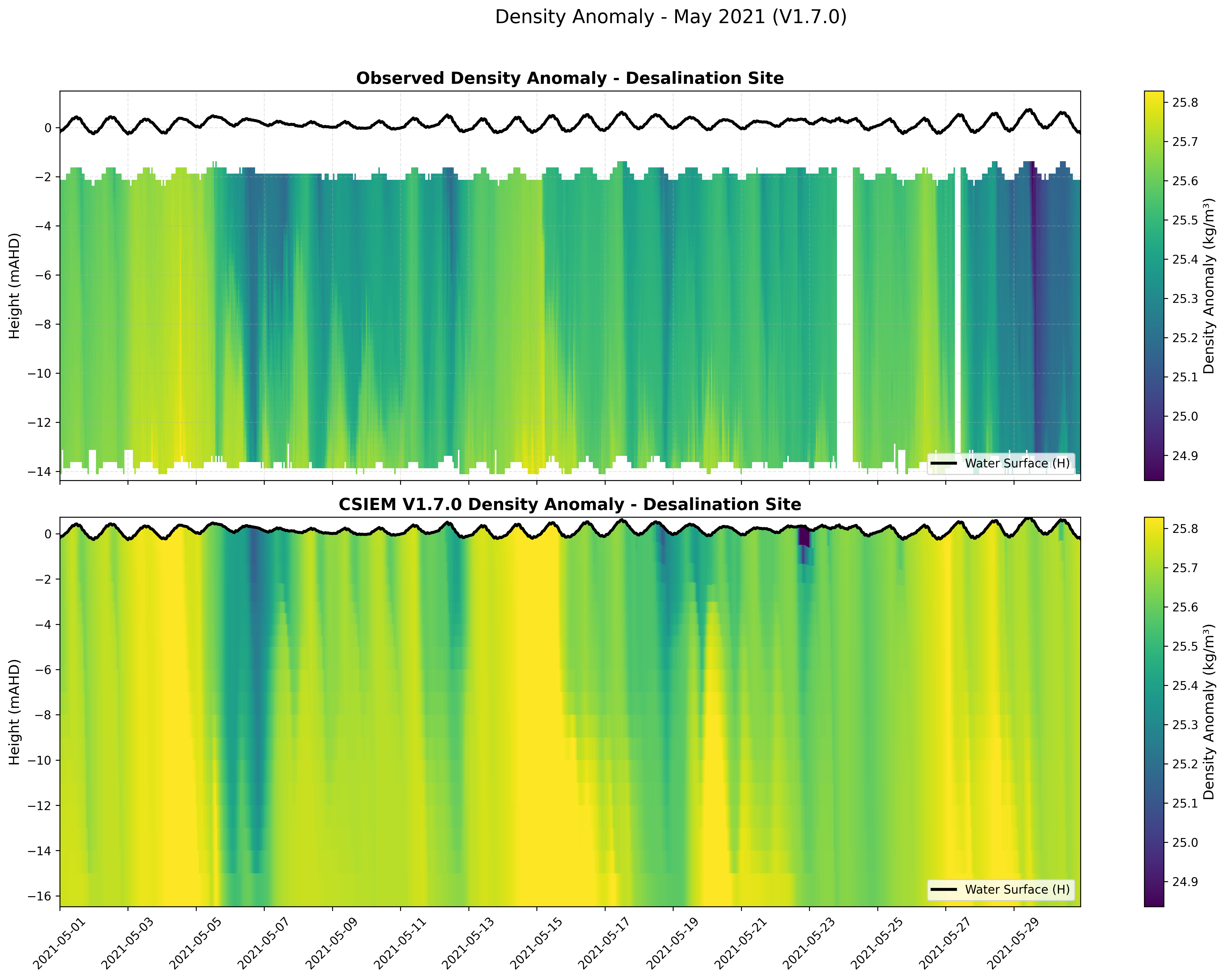

Desalination Site — Density Anomaly — May 2021

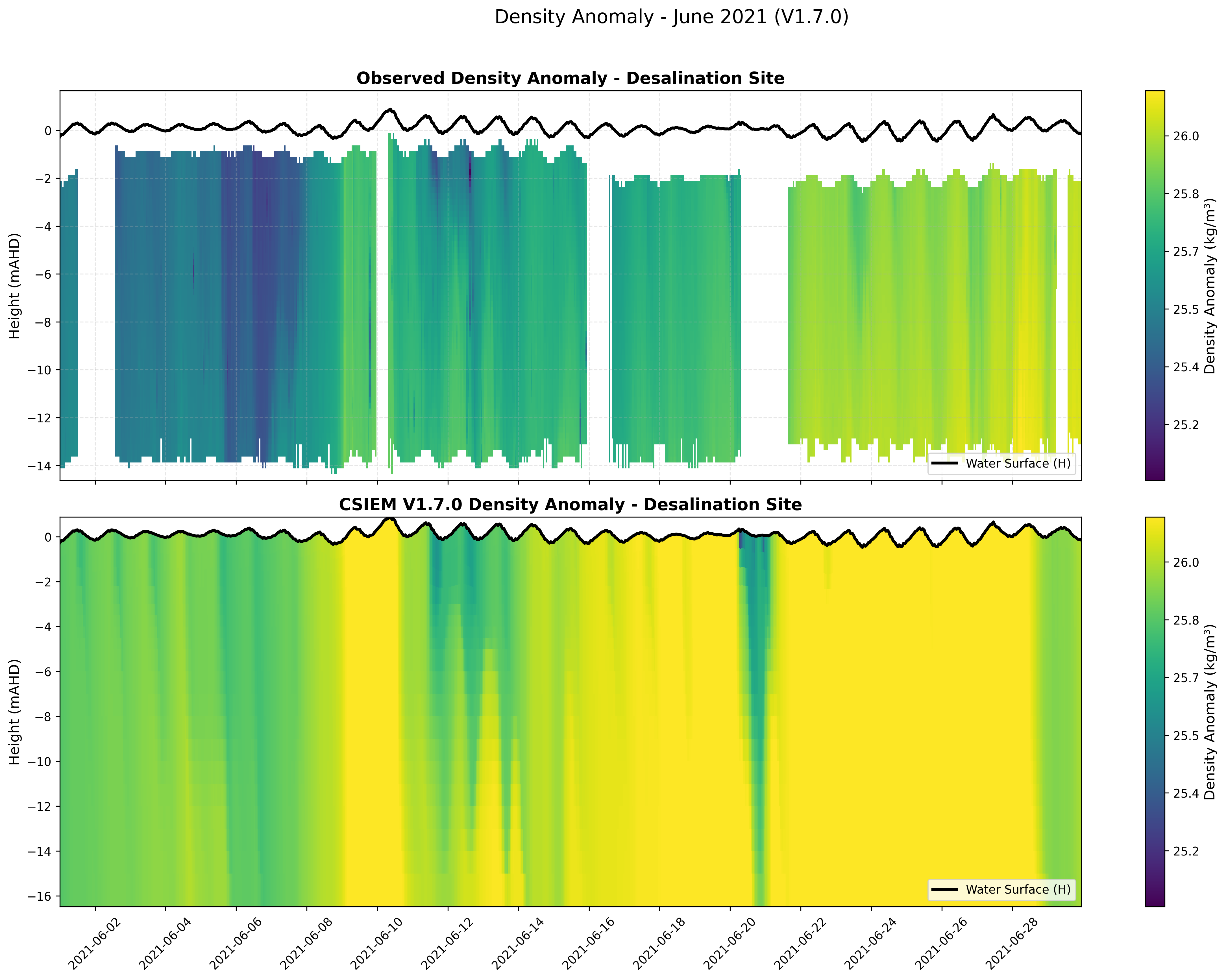

Desalination Site — Density Anomaly — Jun 2021
No data for Jul 2021
No data for Aug 2021
No data for Sep 2021
No data for Oct 2021
No data for Nov 2021
No data for Dec 2021

CS13 Buoy (South)

Southern Cockburn Sound — DWER CS13 mooring

Dissolved Oxygen (mg/L)

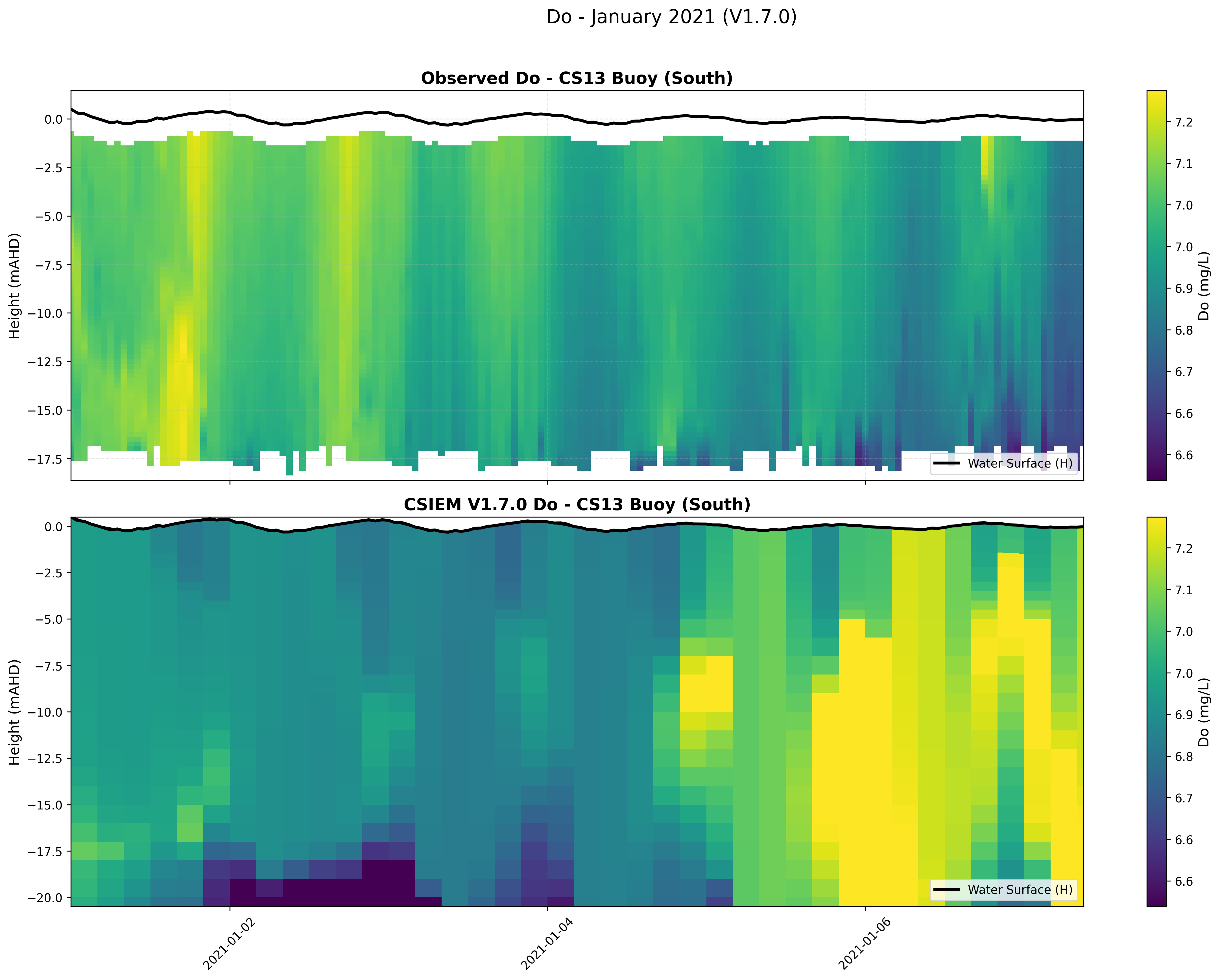

CS13 Buoy (South) — Dissolved Oxygen — Jan 2021
No data for Feb 2021

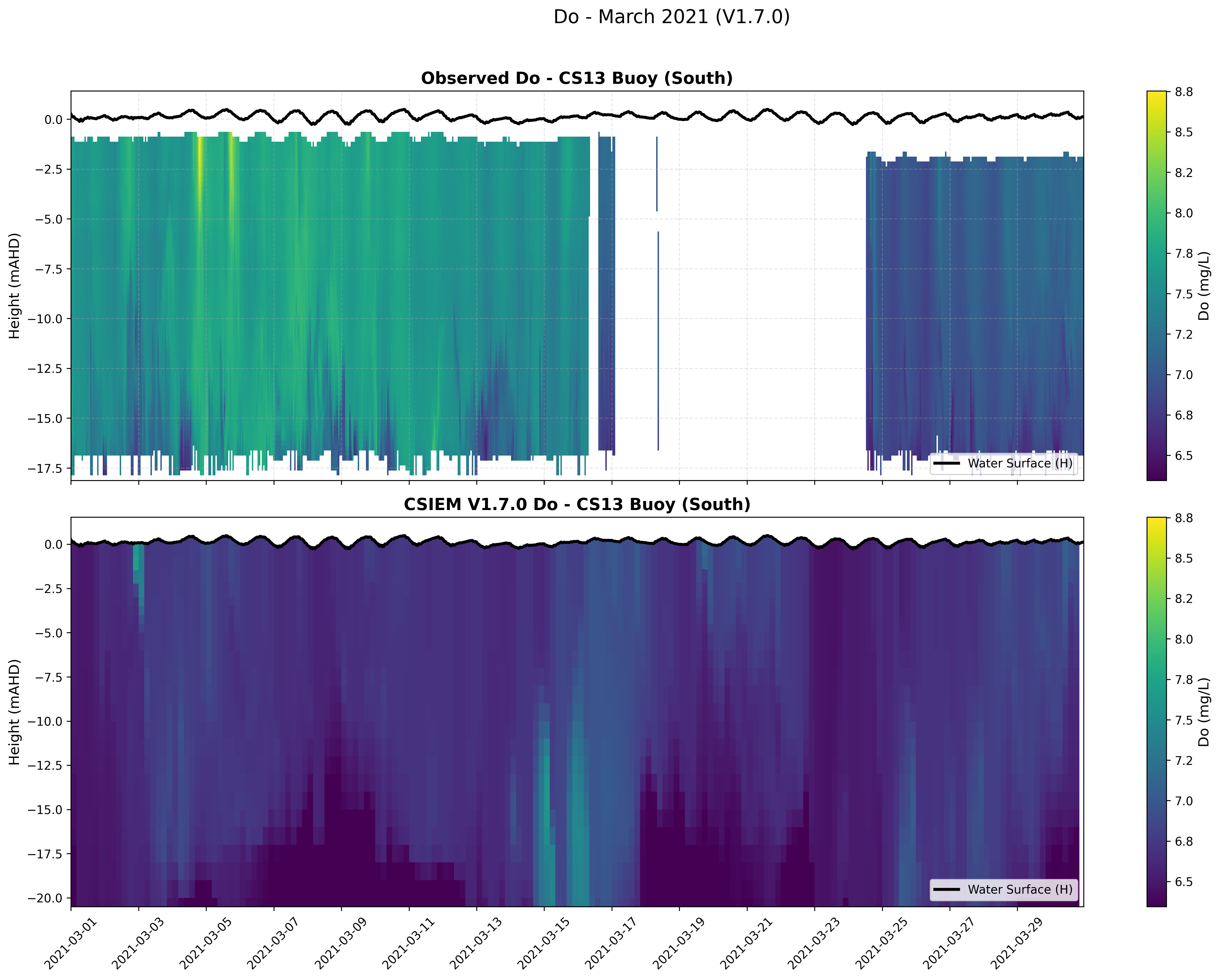

CS13 Buoy (South) — Dissolved Oxygen — Mar 2021

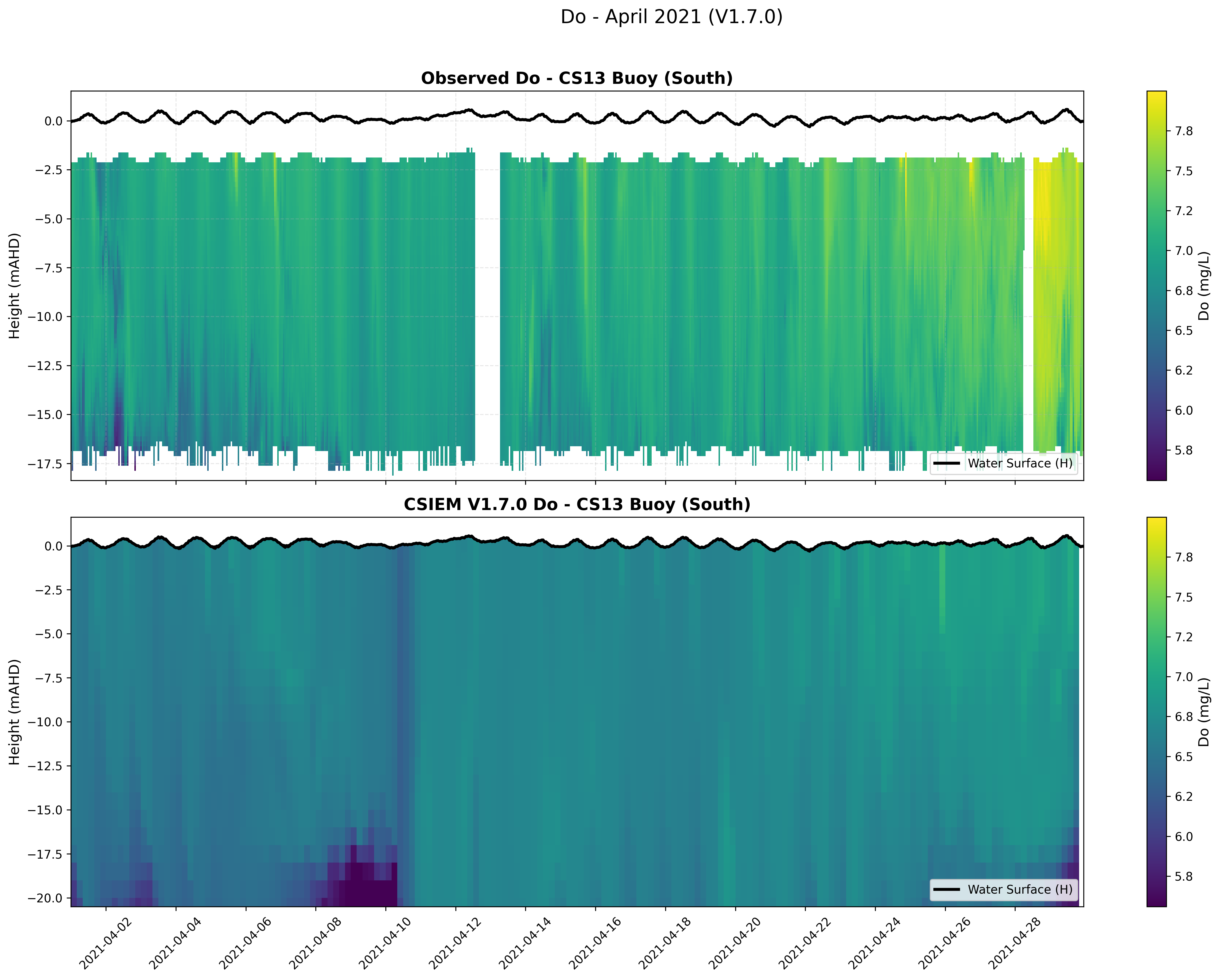

CS13 Buoy (South) — Dissolved Oxygen — Apr 2021

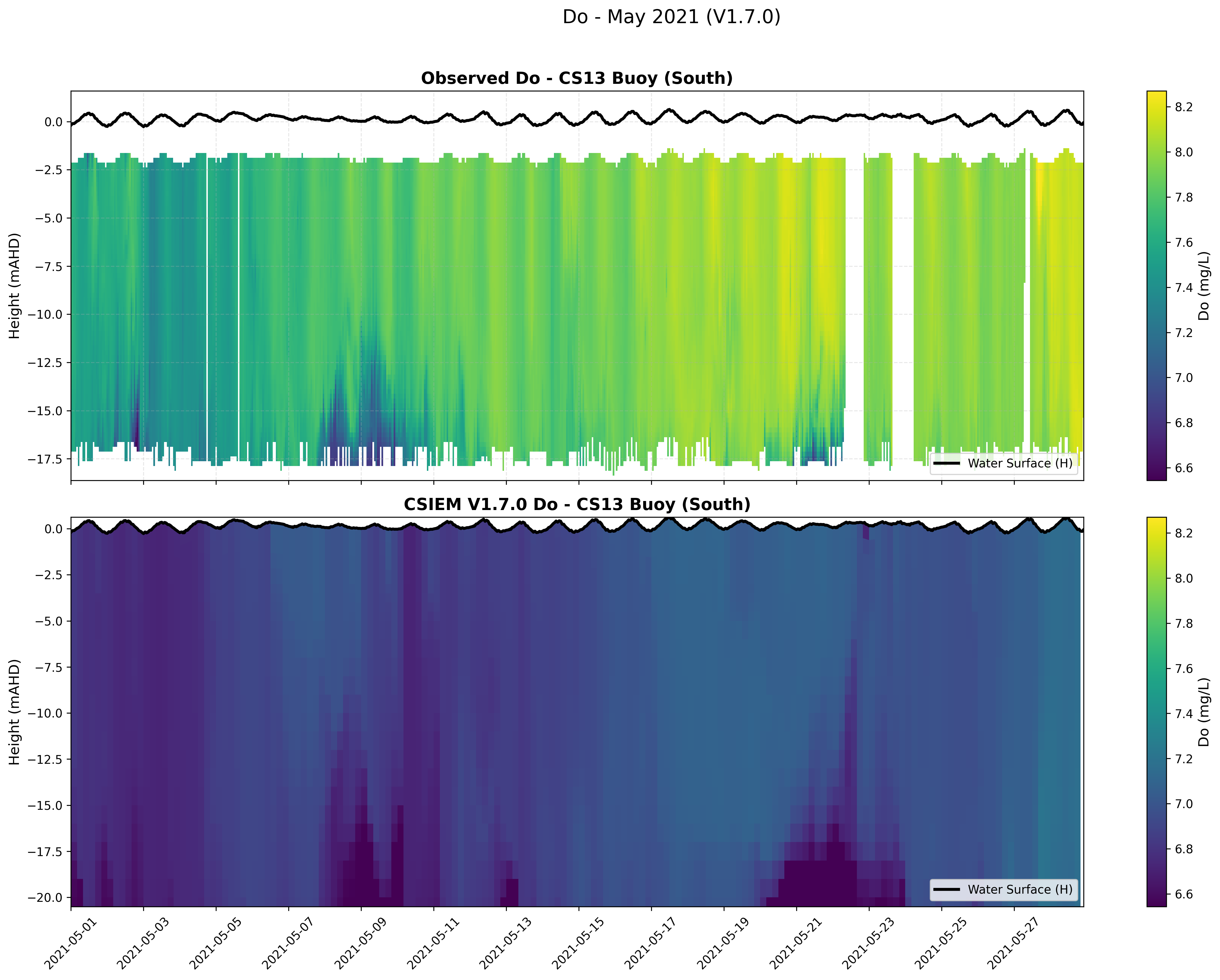

CS13 Buoy (South) — Dissolved Oxygen — May 2021
No data for Jun 2021
No data for Jul 2021

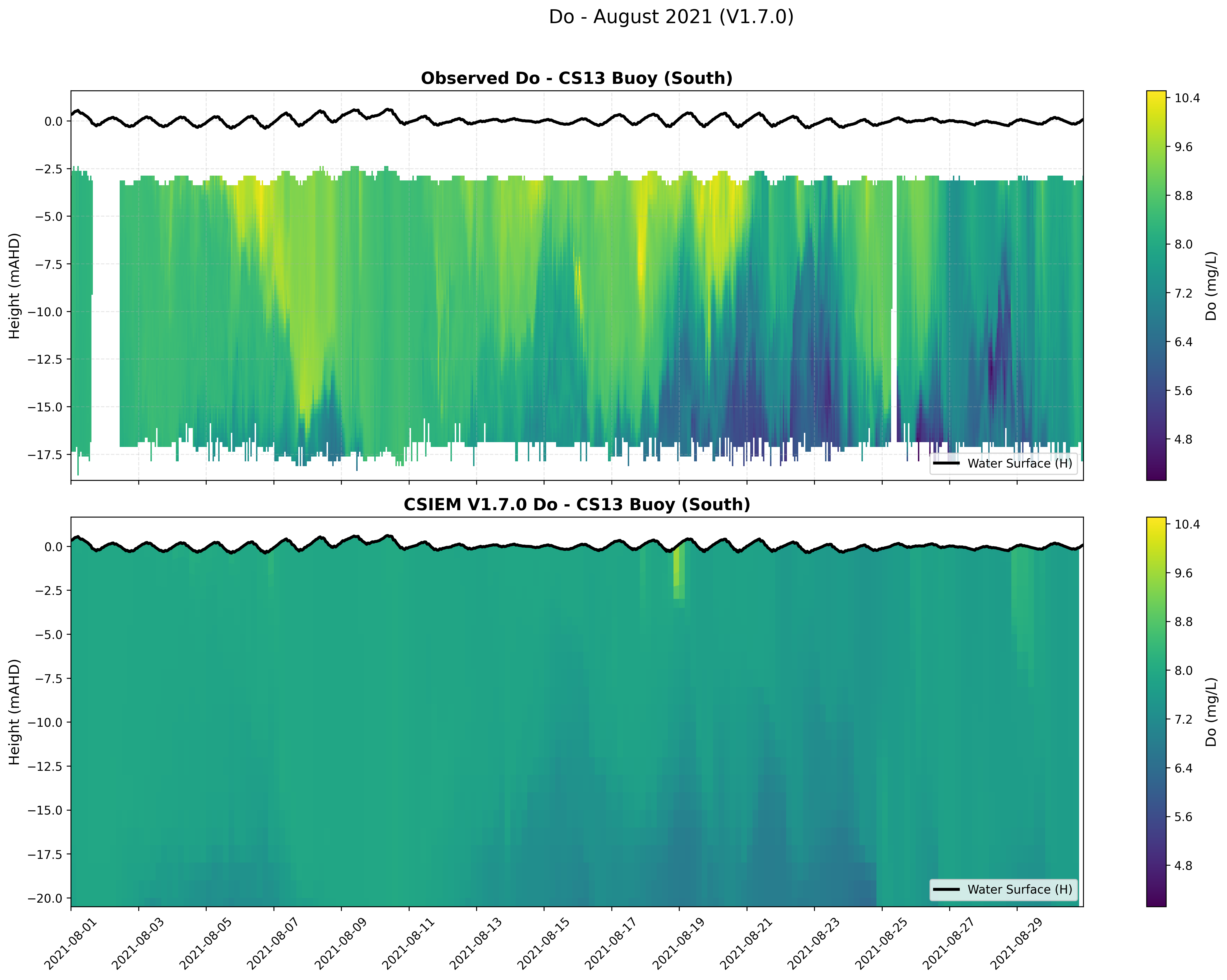

CS13 Buoy (South) — Dissolved Oxygen — Aug 2021

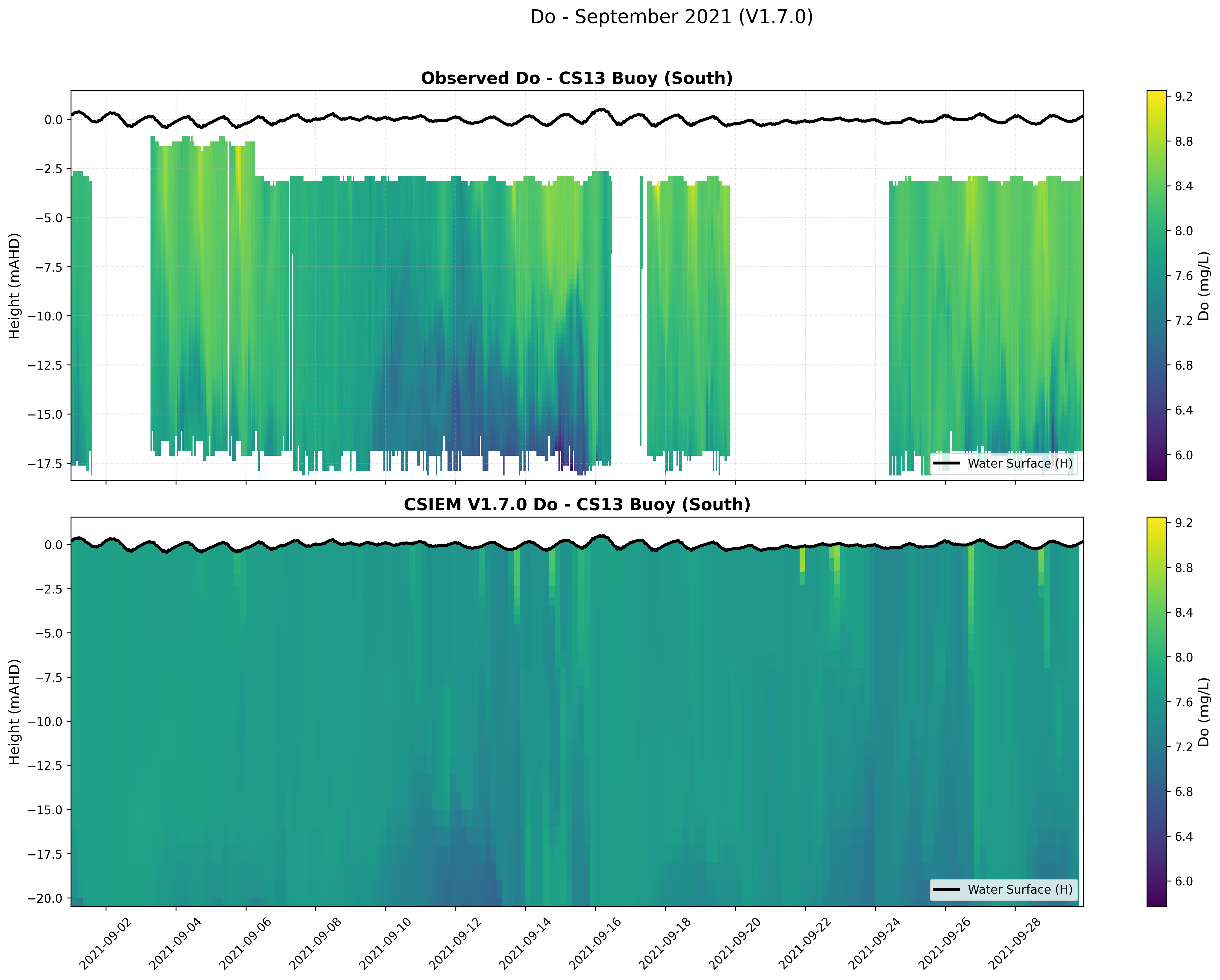

CS13 Buoy (South) — Dissolved Oxygen — Sep 2021

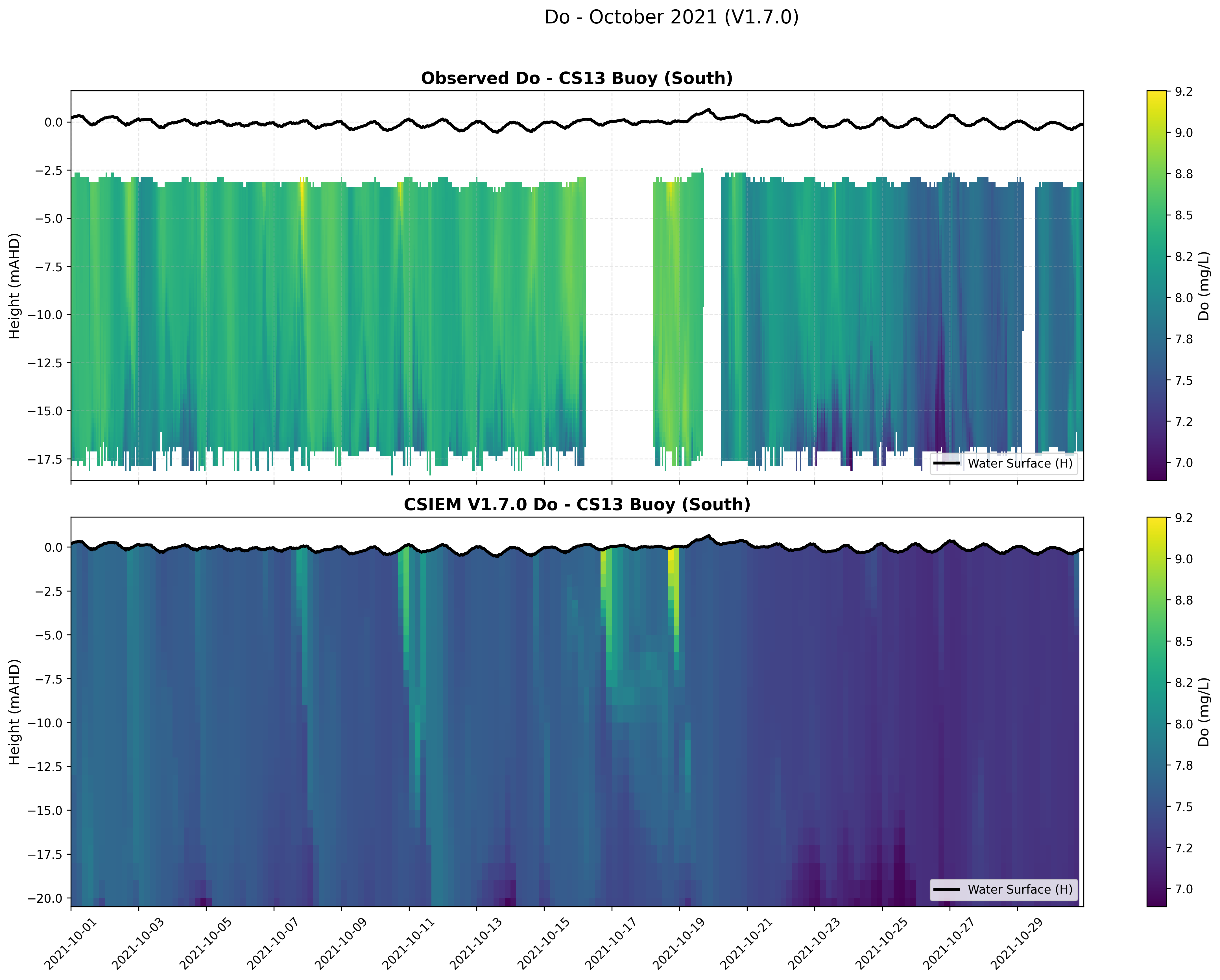

CS13 Buoy (South) — Dissolved Oxygen — Oct 2021

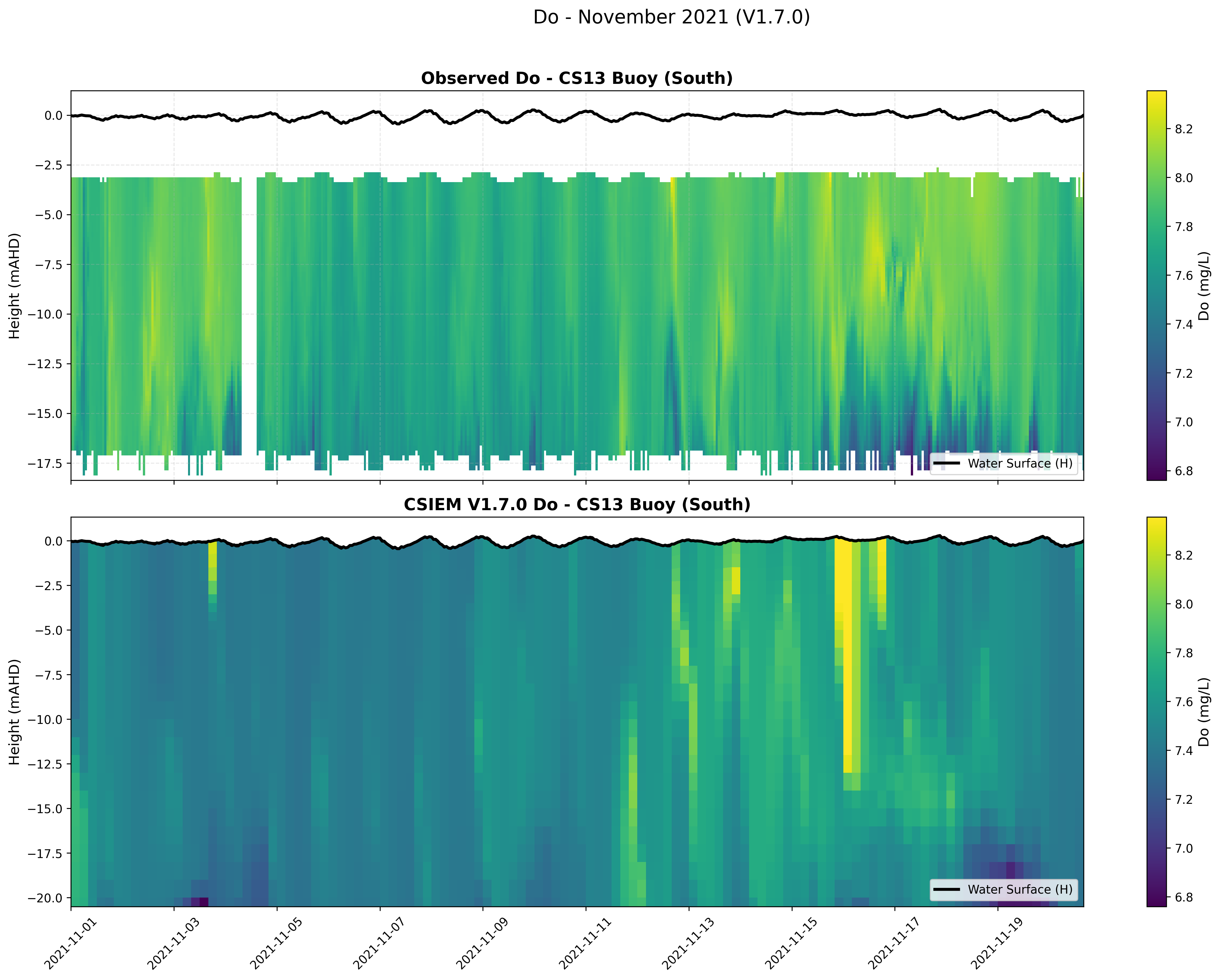

CS13 Buoy (South) — Dissolved Oxygen — Nov 2021

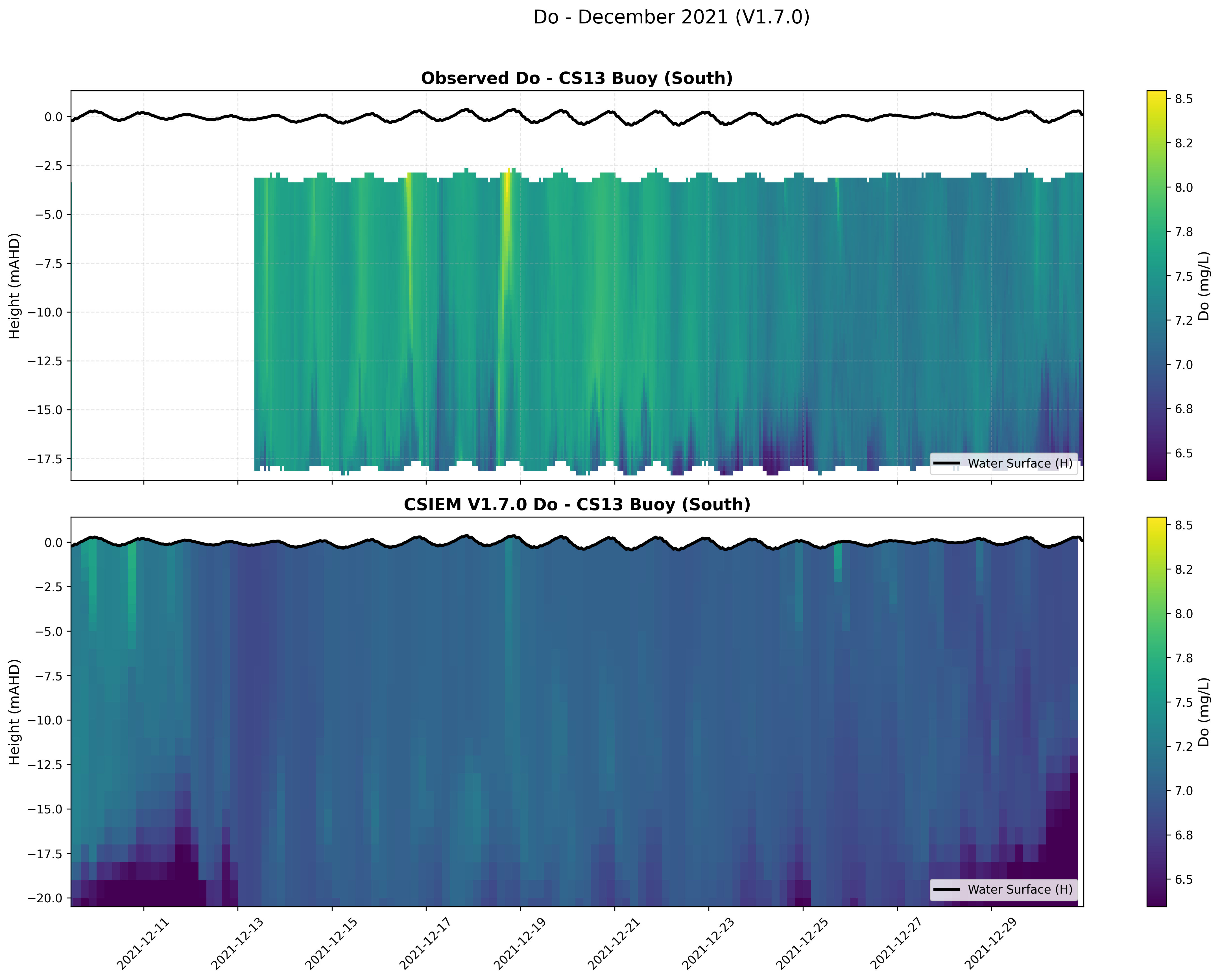

CS13 Buoy (South) — Dissolved Oxygen — Dec 2021

Density Anomaly (kg/m³)

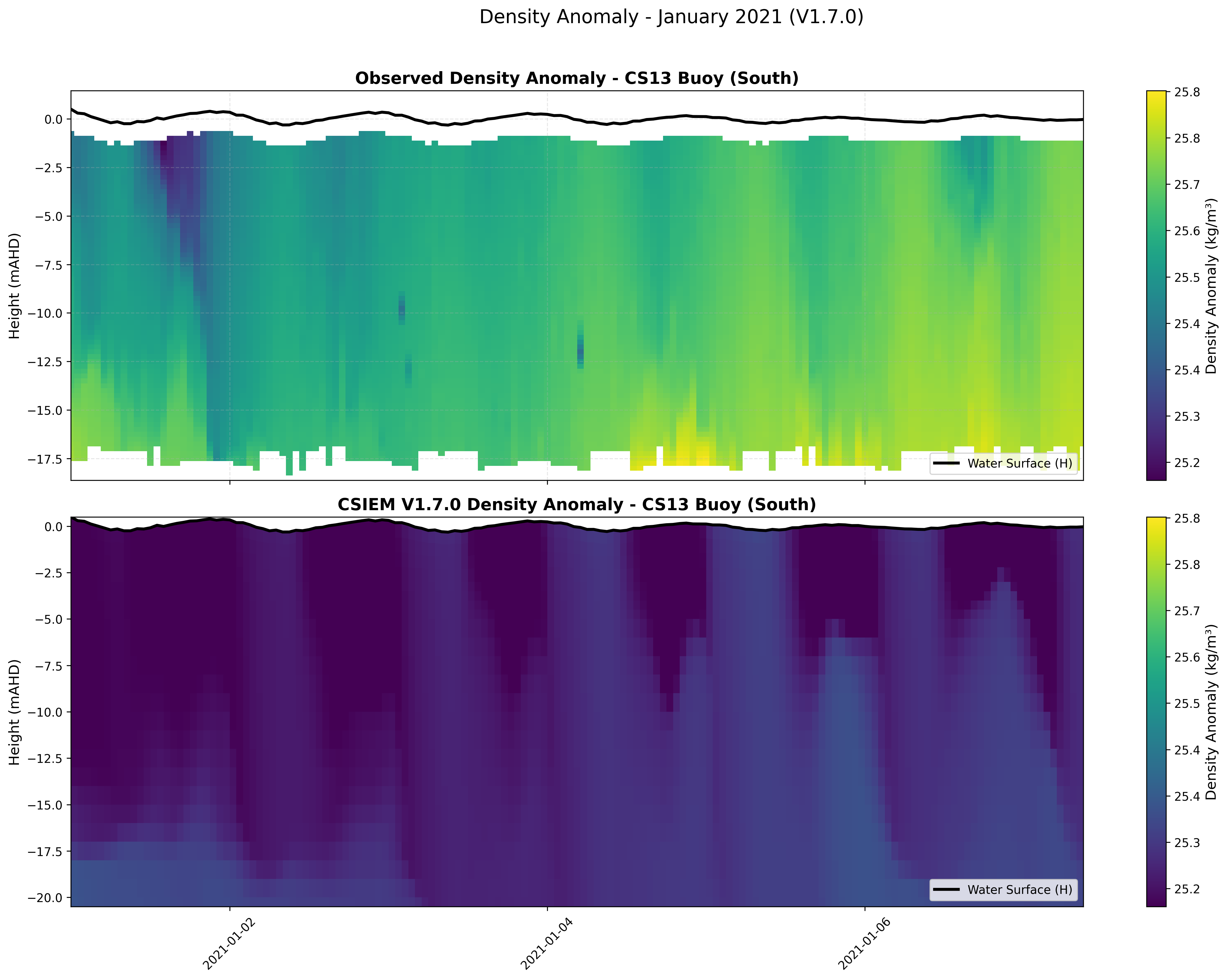

CS13 Buoy (South) — Density Anomaly — Jan 2021

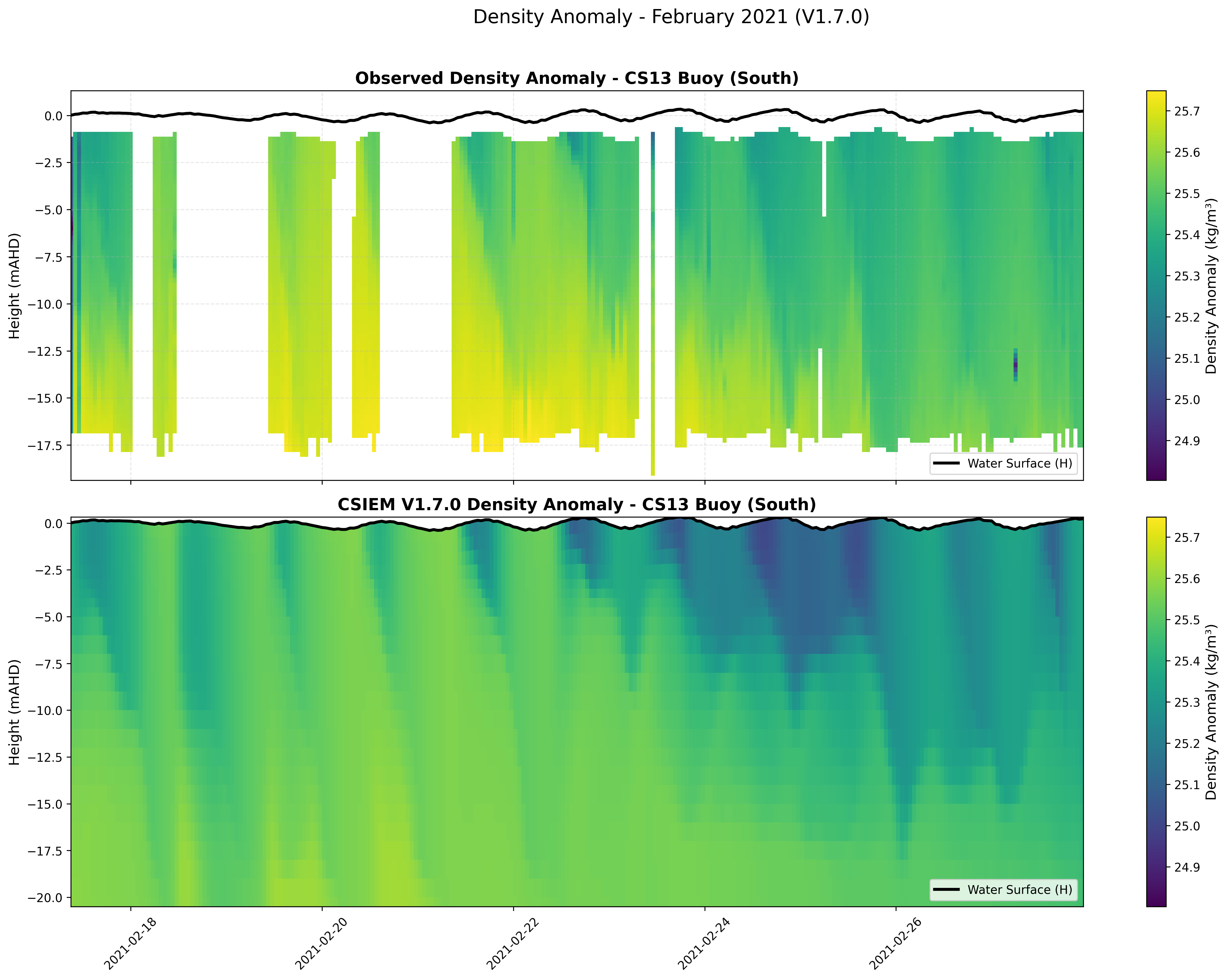

CS13 Buoy (South) — Density Anomaly — Feb 2021

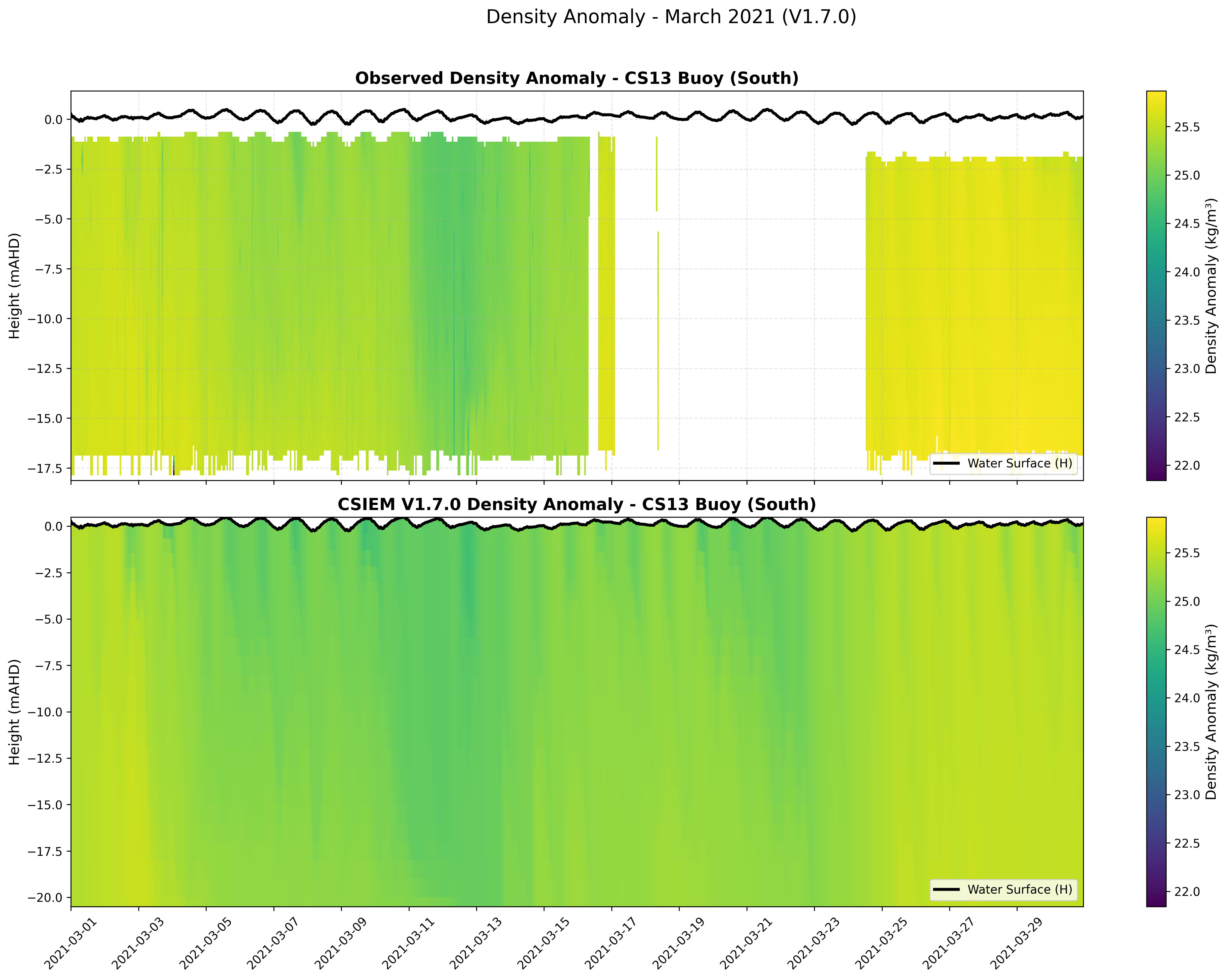

CS13 Buoy (South) — Density Anomaly — Mar 2021
No data for Apr 2021

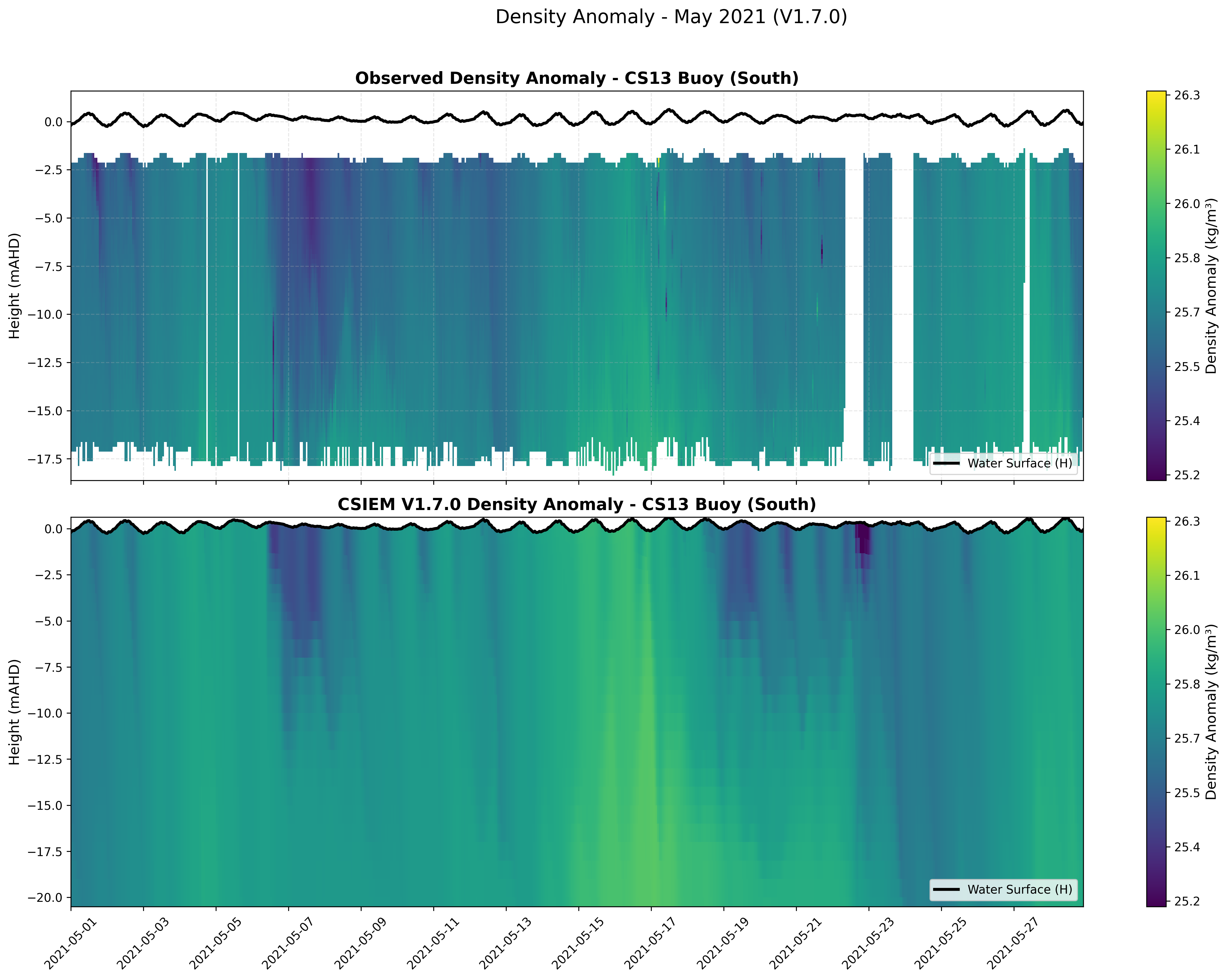

CS13 Buoy (South) — Density Anomaly — May 2021

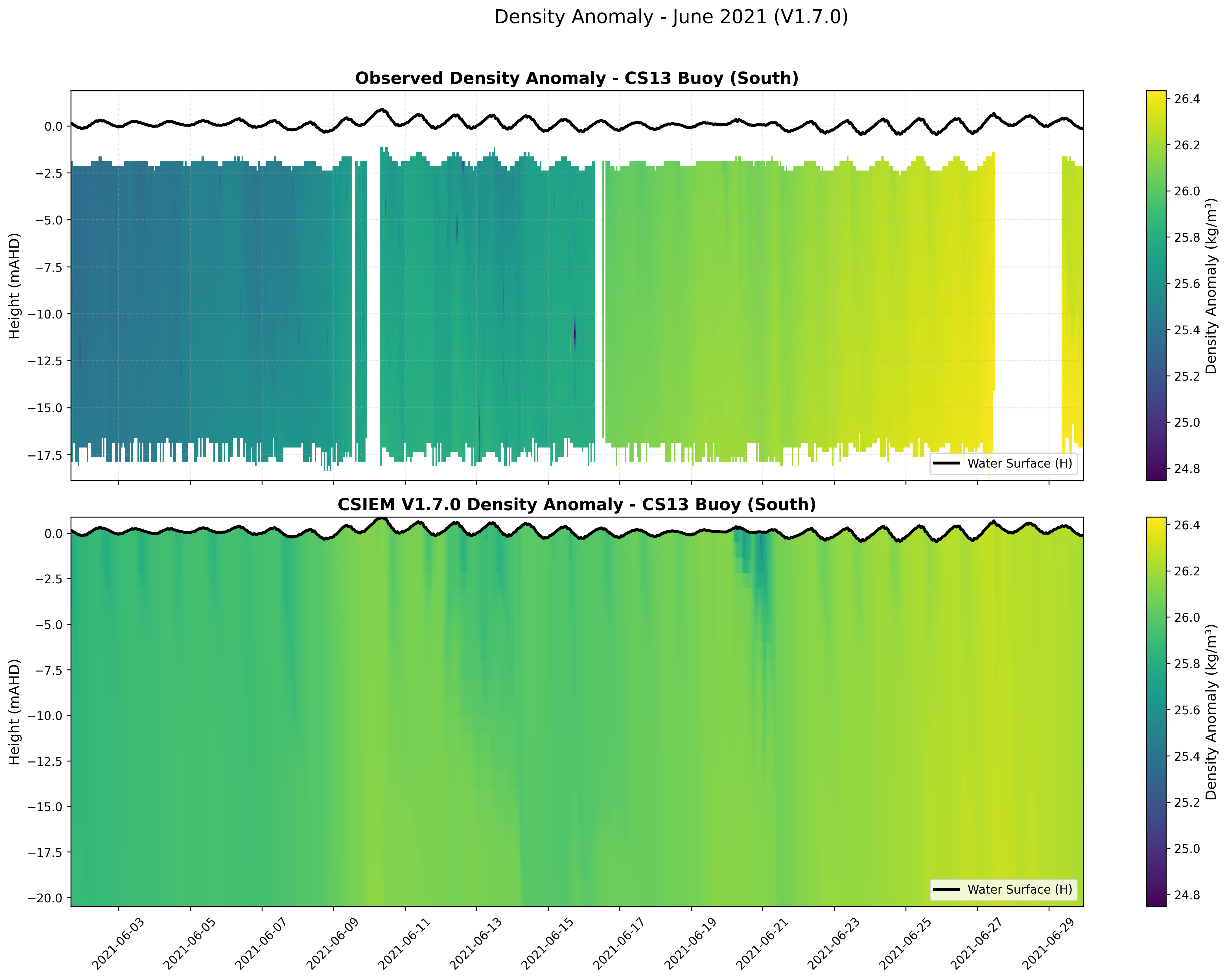

CS13 Buoy (South) — Density Anomaly — Jun 2021

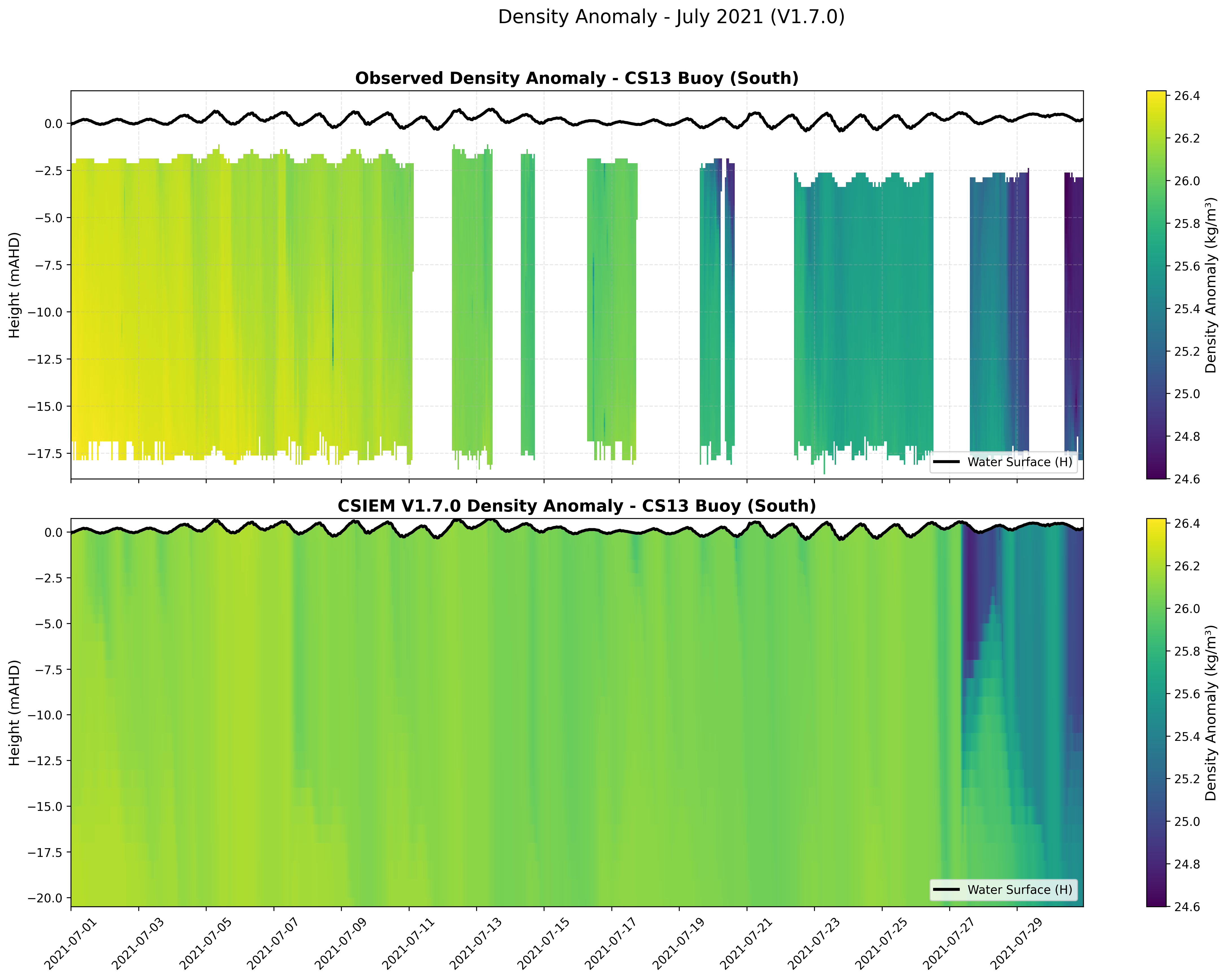

CS13 Buoy (South) — Density Anomaly — Jul 2021

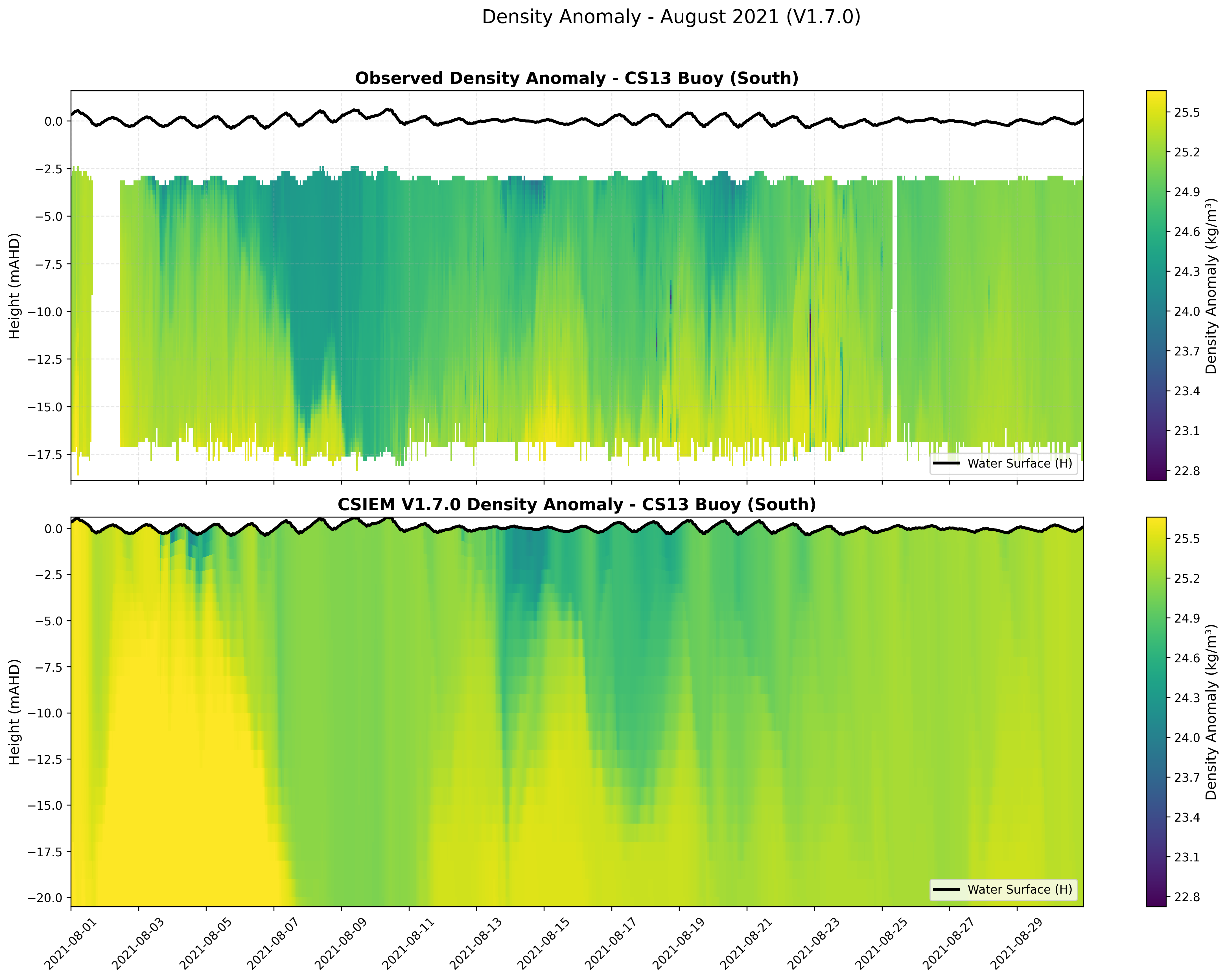

CS13 Buoy (South) — Density Anomaly — Aug 2021
No data for Sep 2021
No data for Oct 2021

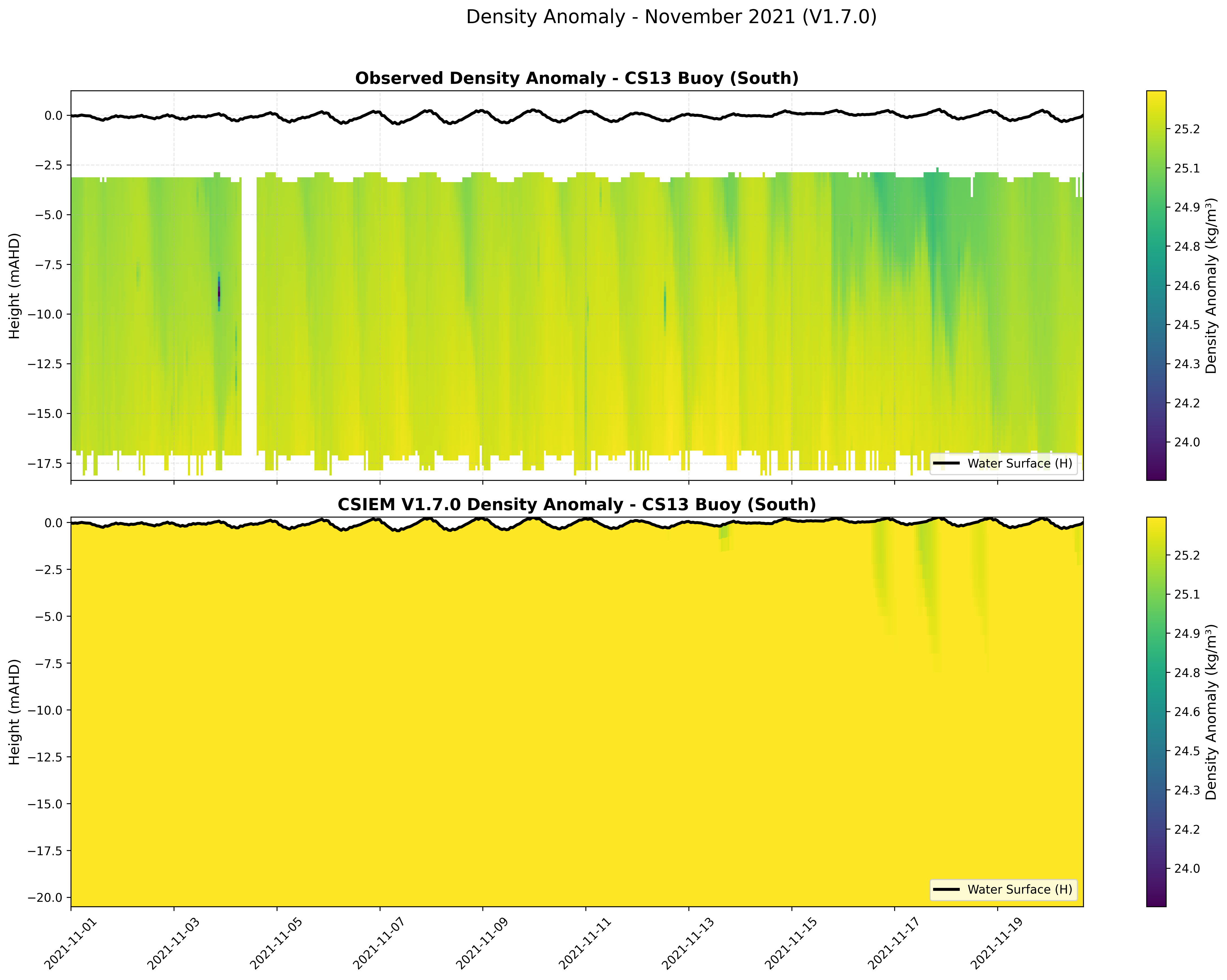

CS13 Buoy (South) — Density Anomaly — Nov 2021

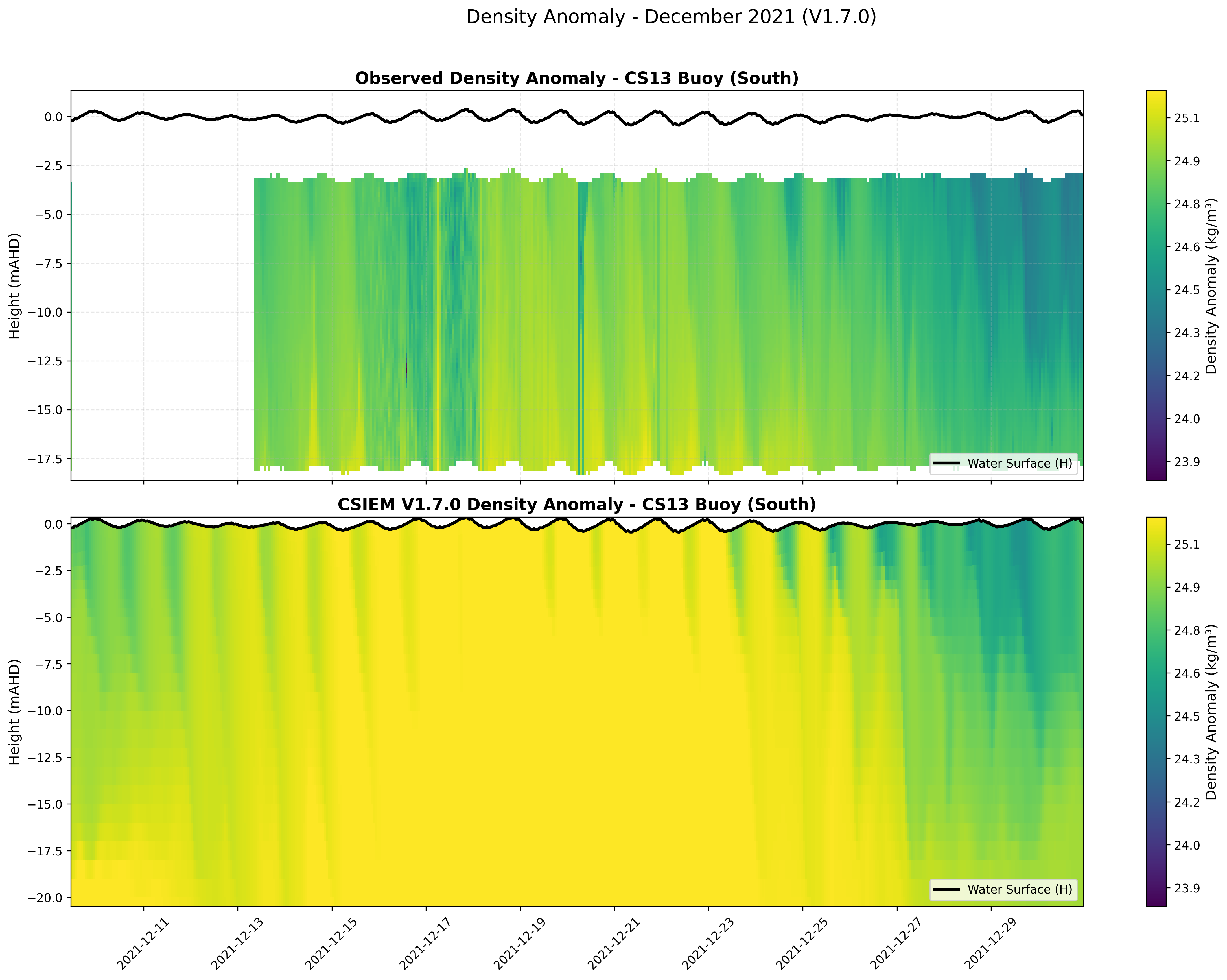

CS13 Buoy (South) — Density Anomaly — Dec 2021

CS11 Site (South)

Southern Cockburn Sound — DWER CS11 mooring

Dissolved Oxygen (mg/L)

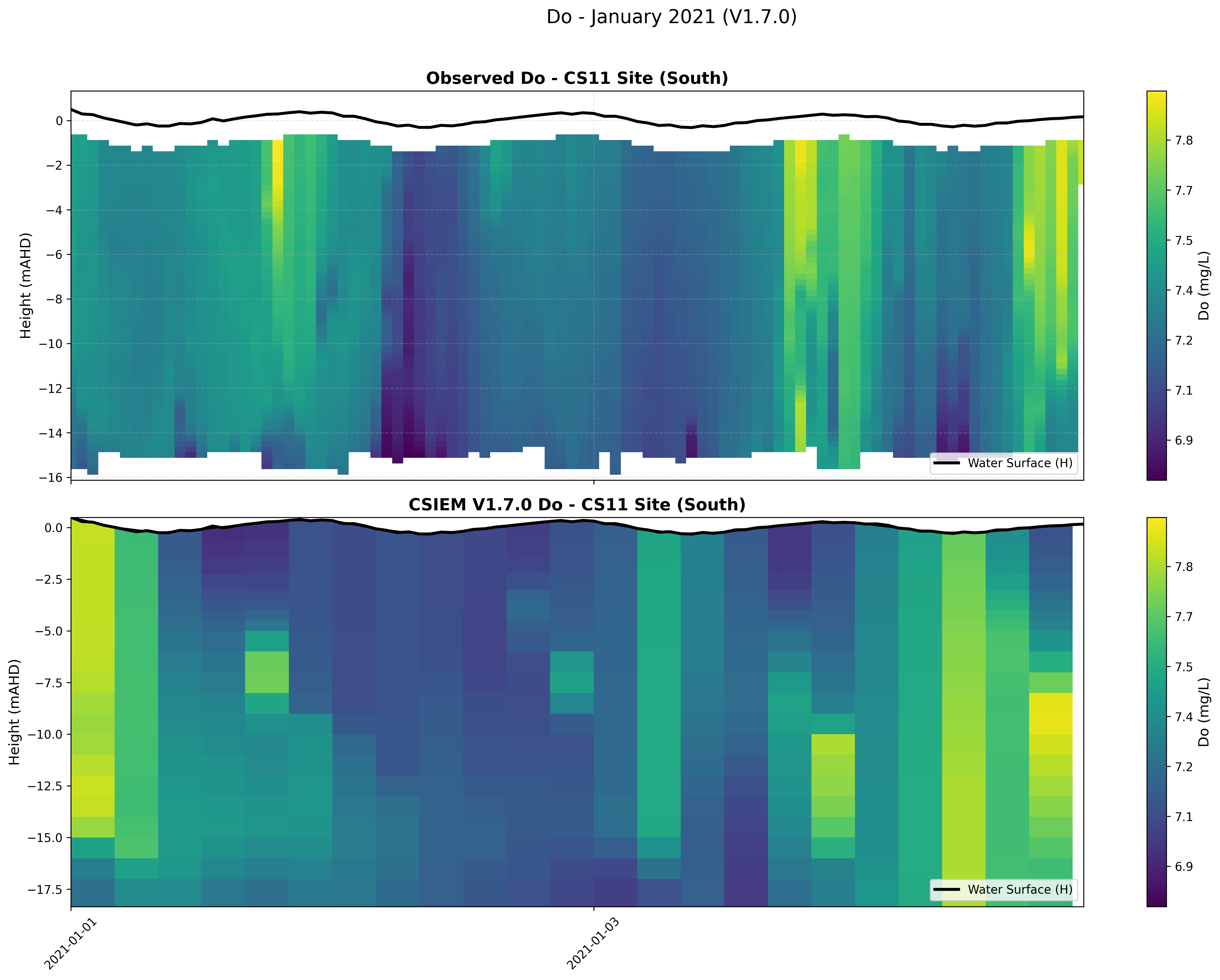

CS11 Site (South) — Dissolved Oxygen — Jan 2021

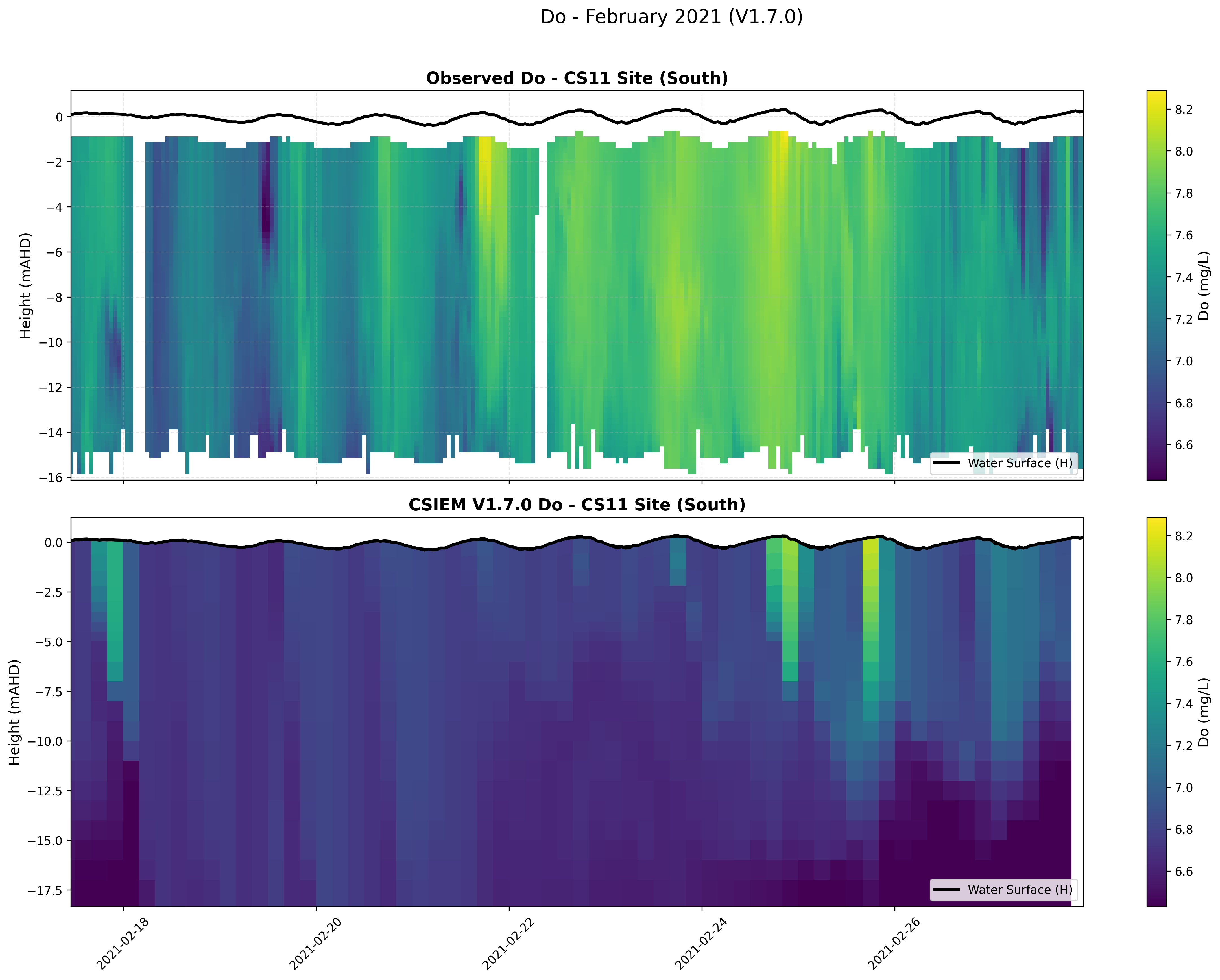

CS11 Site (South) — Dissolved Oxygen — Feb 2021

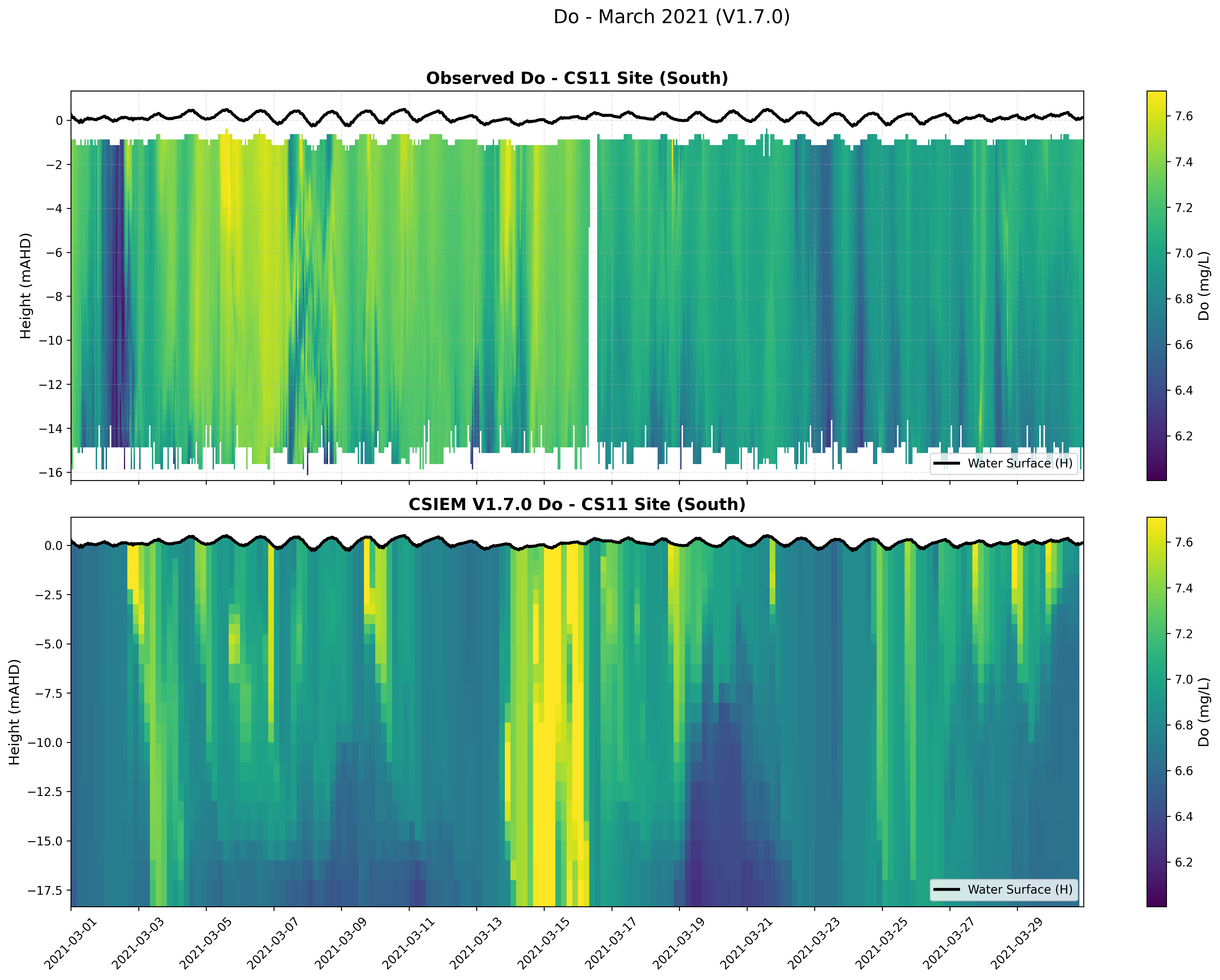

CS11 Site (South) — Dissolved Oxygen — Mar 2021

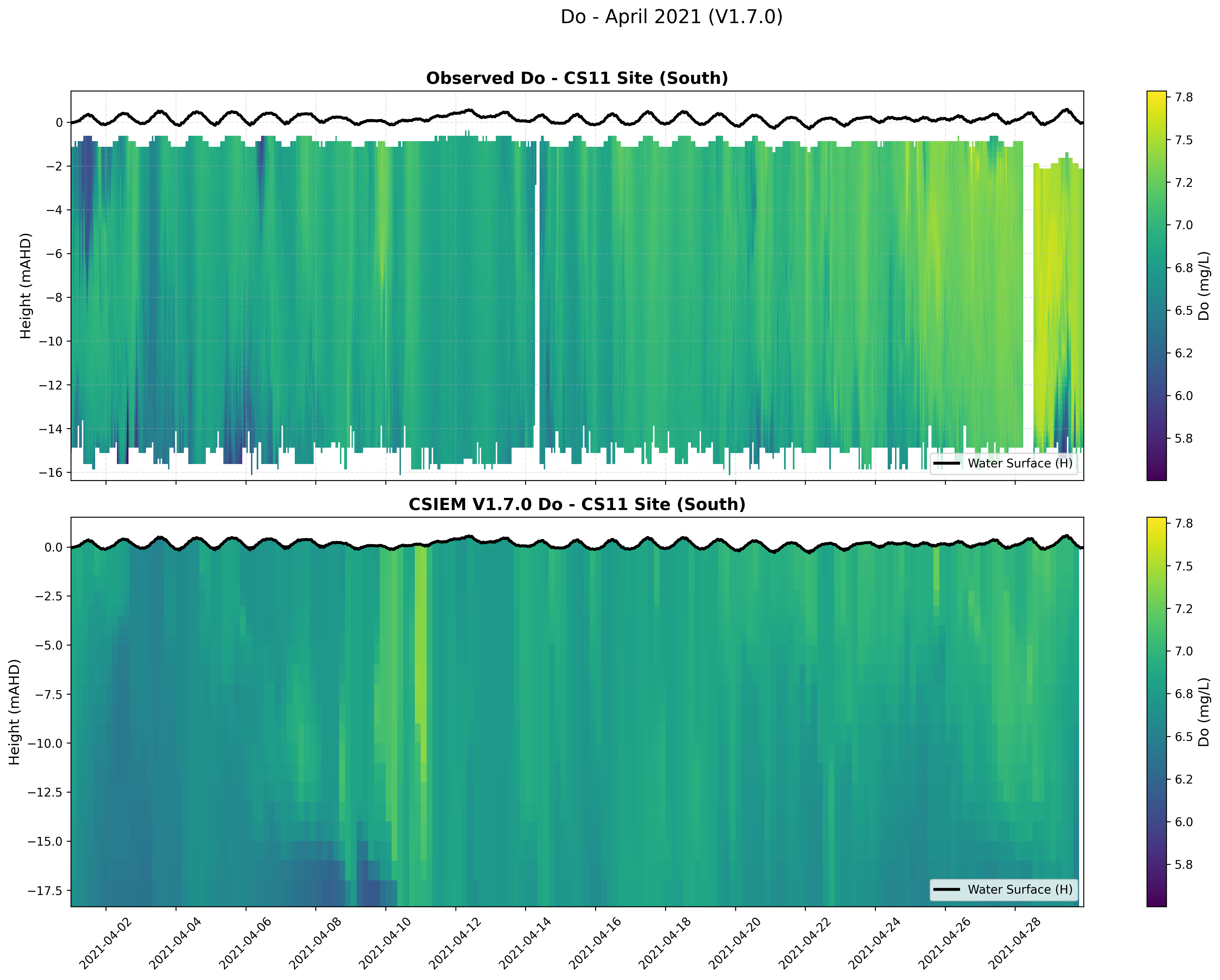

CS11 Site (South) — Dissolved Oxygen — Apr 2021

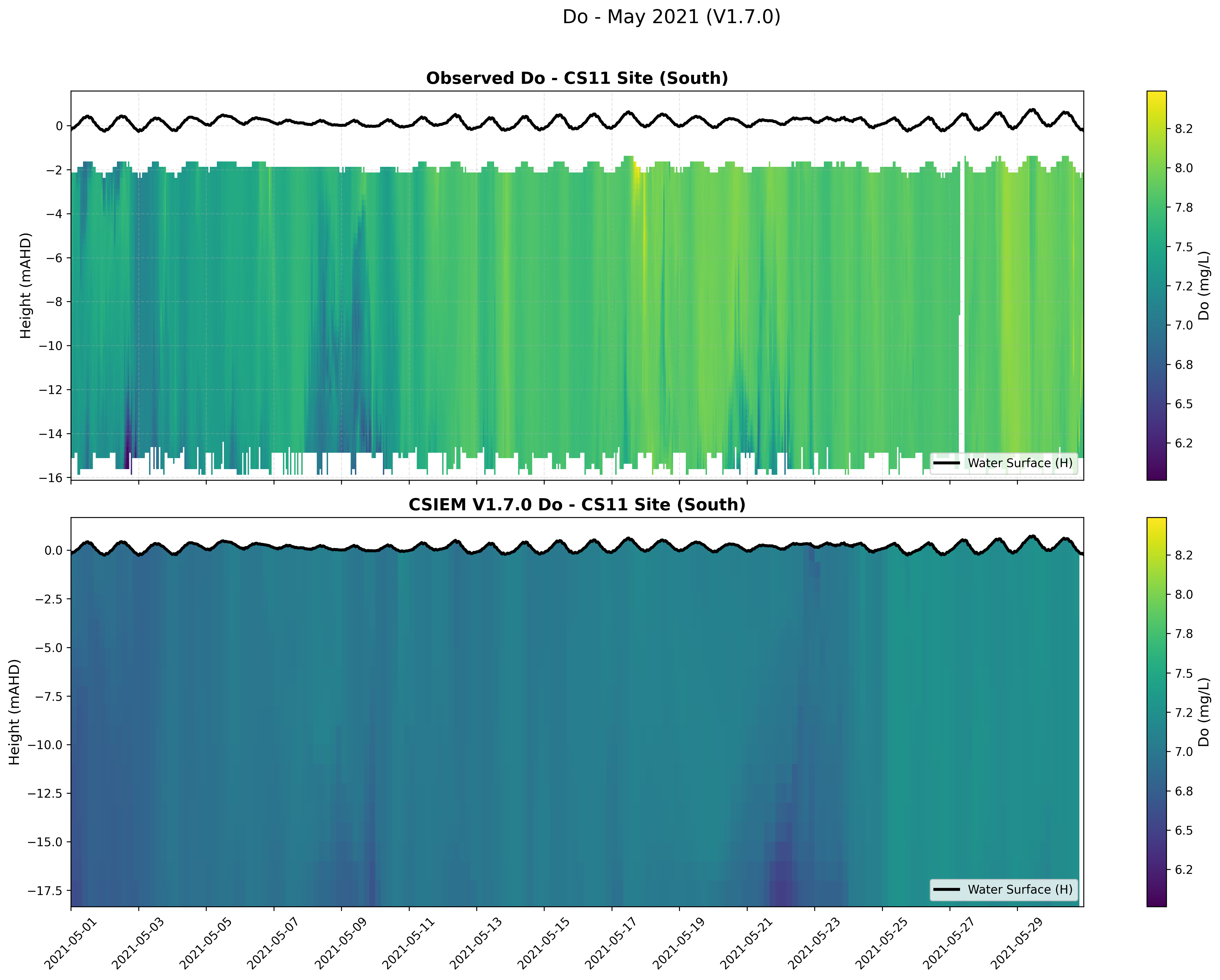

CS11 Site (South) — Dissolved Oxygen — May 2021
No data for Jun 2021
No data for Jul 2021

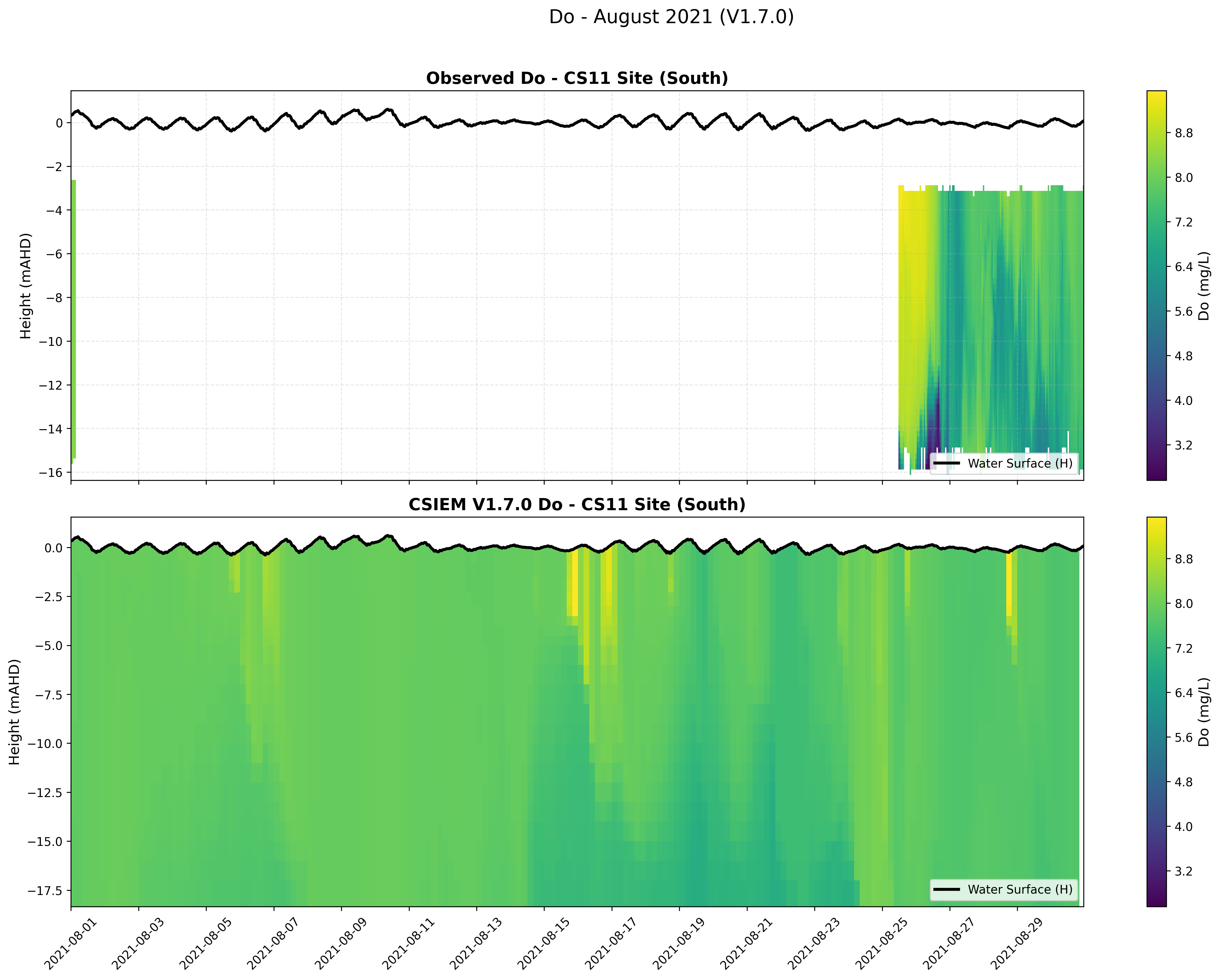

CS11 Site (South) — Dissolved Oxygen — Aug 2021
CS11 Site (South) — Dissolved Oxygen — Sep 2021

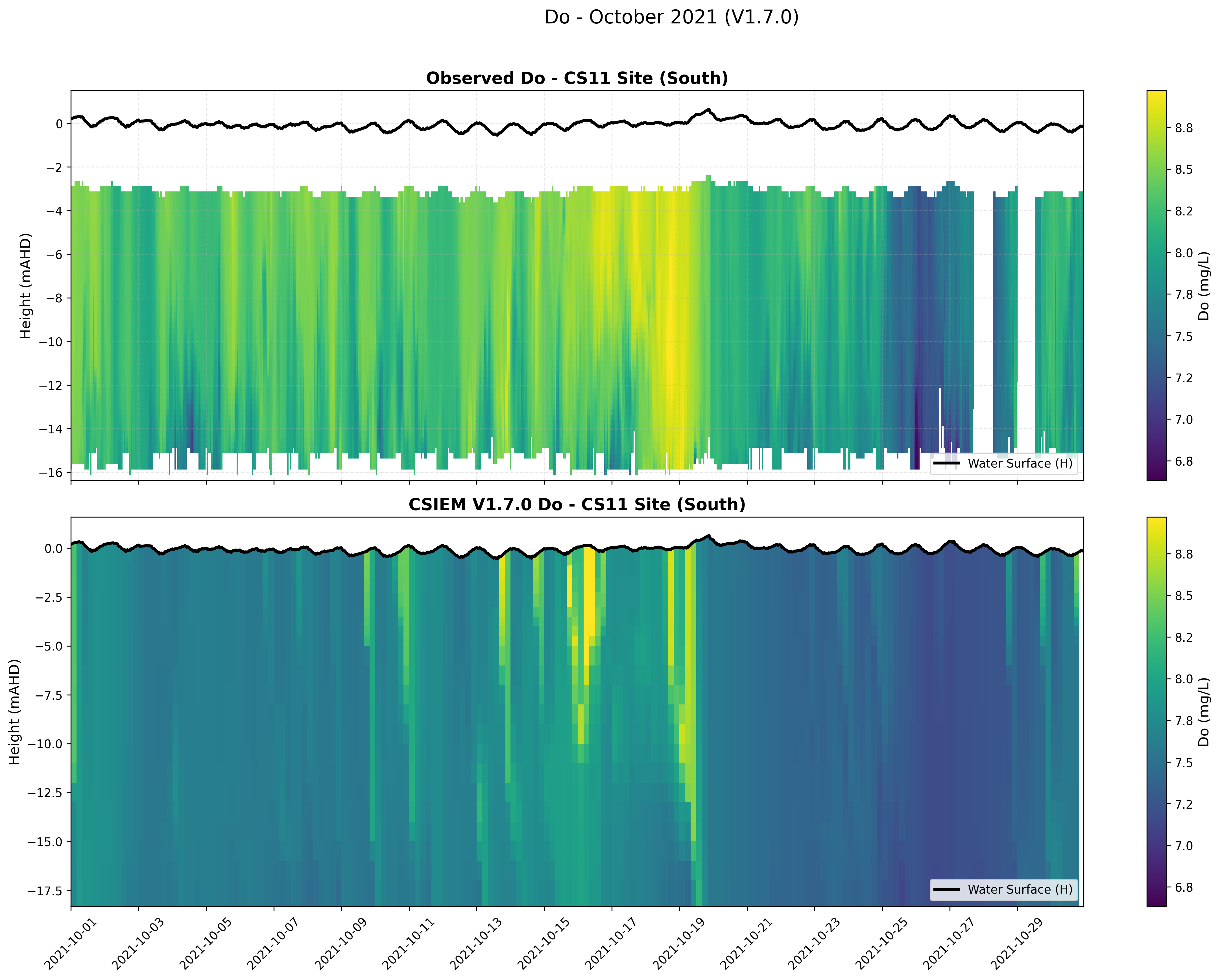

CS11 Site (South) — Dissolved Oxygen — Oct 2021

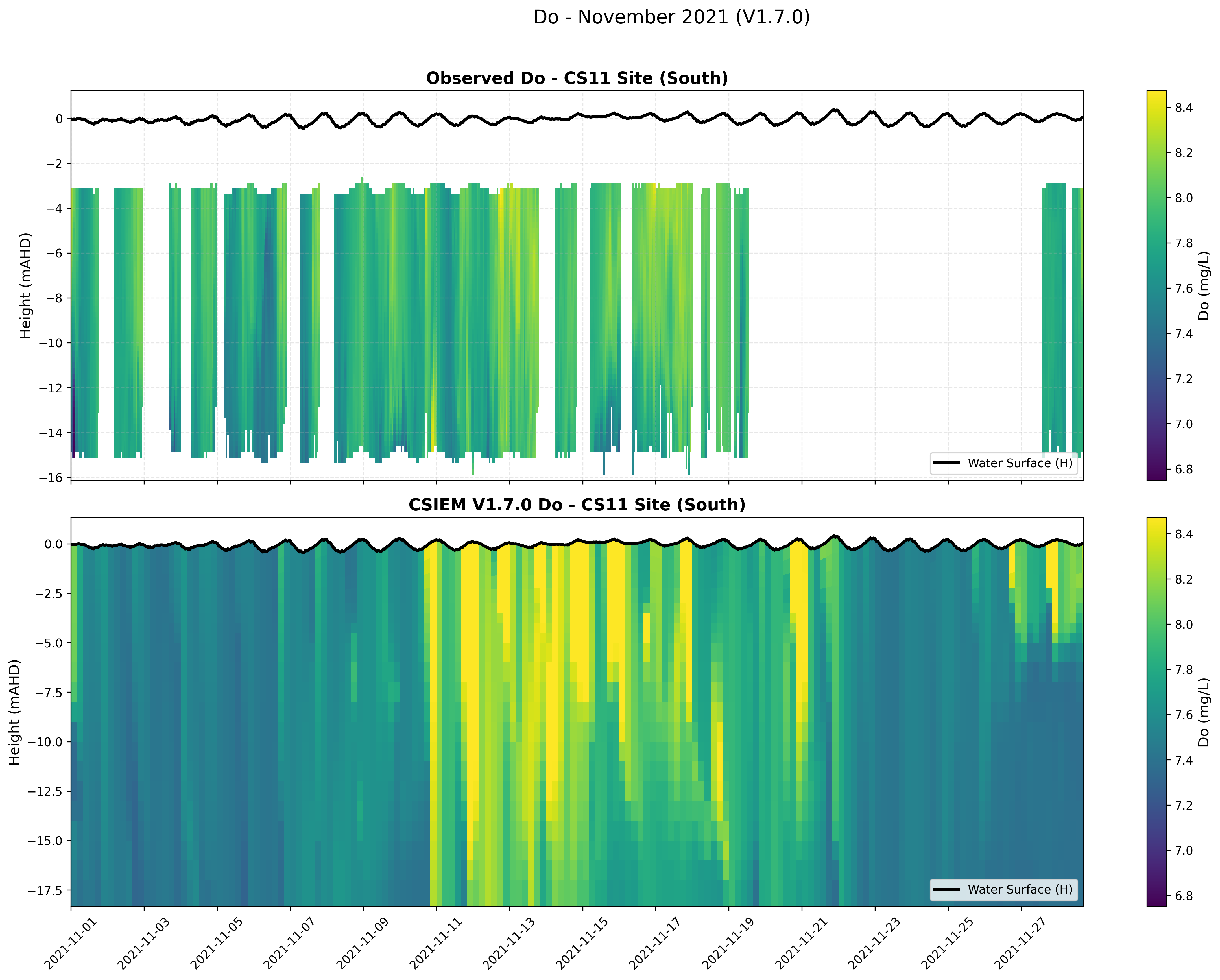

CS11 Site (South) — Dissolved Oxygen — Nov 2021
No data for Dec 2021

Density Anomaly (kg/m³)

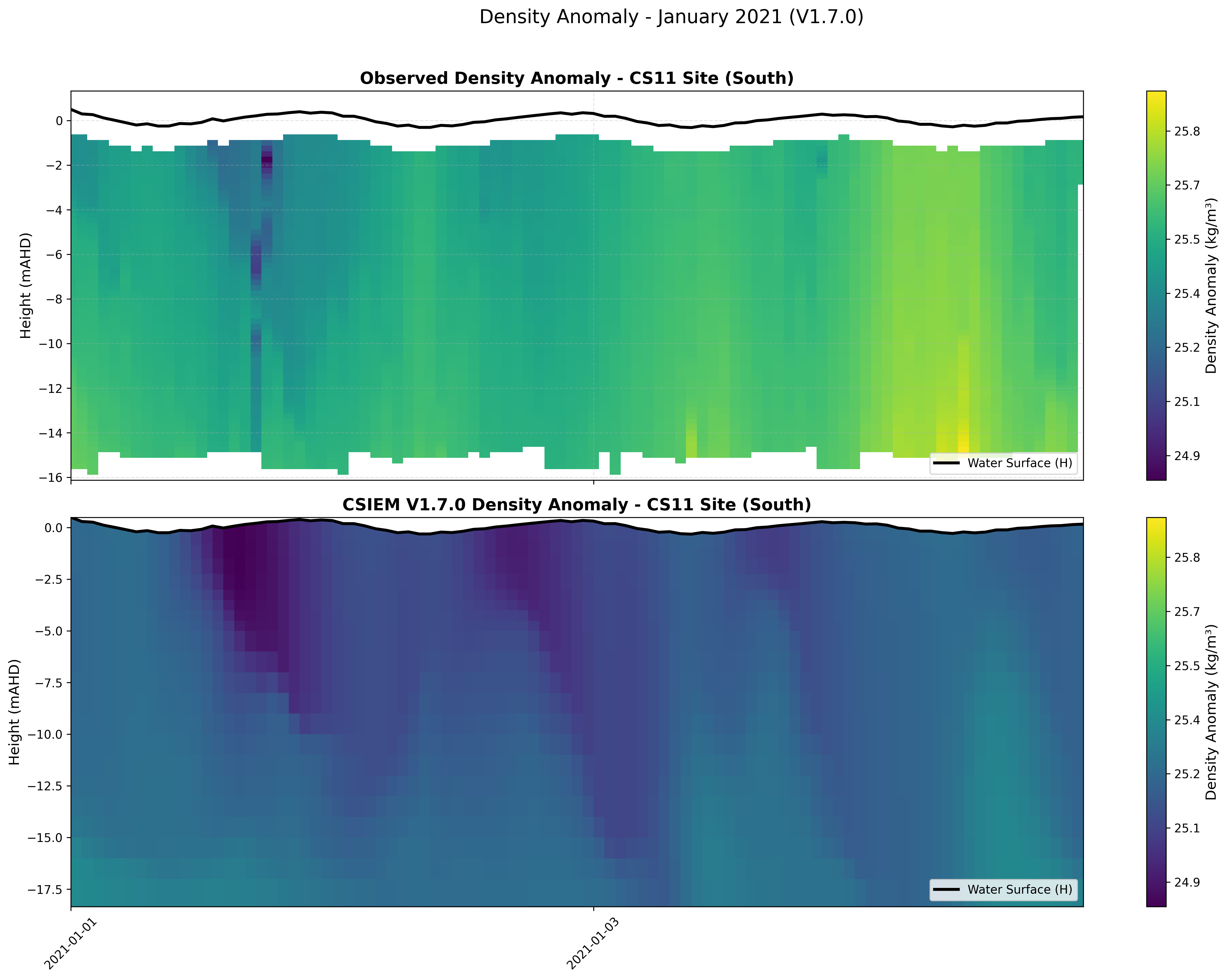

CS11 Site (South) — Density Anomaly — Jan 2021

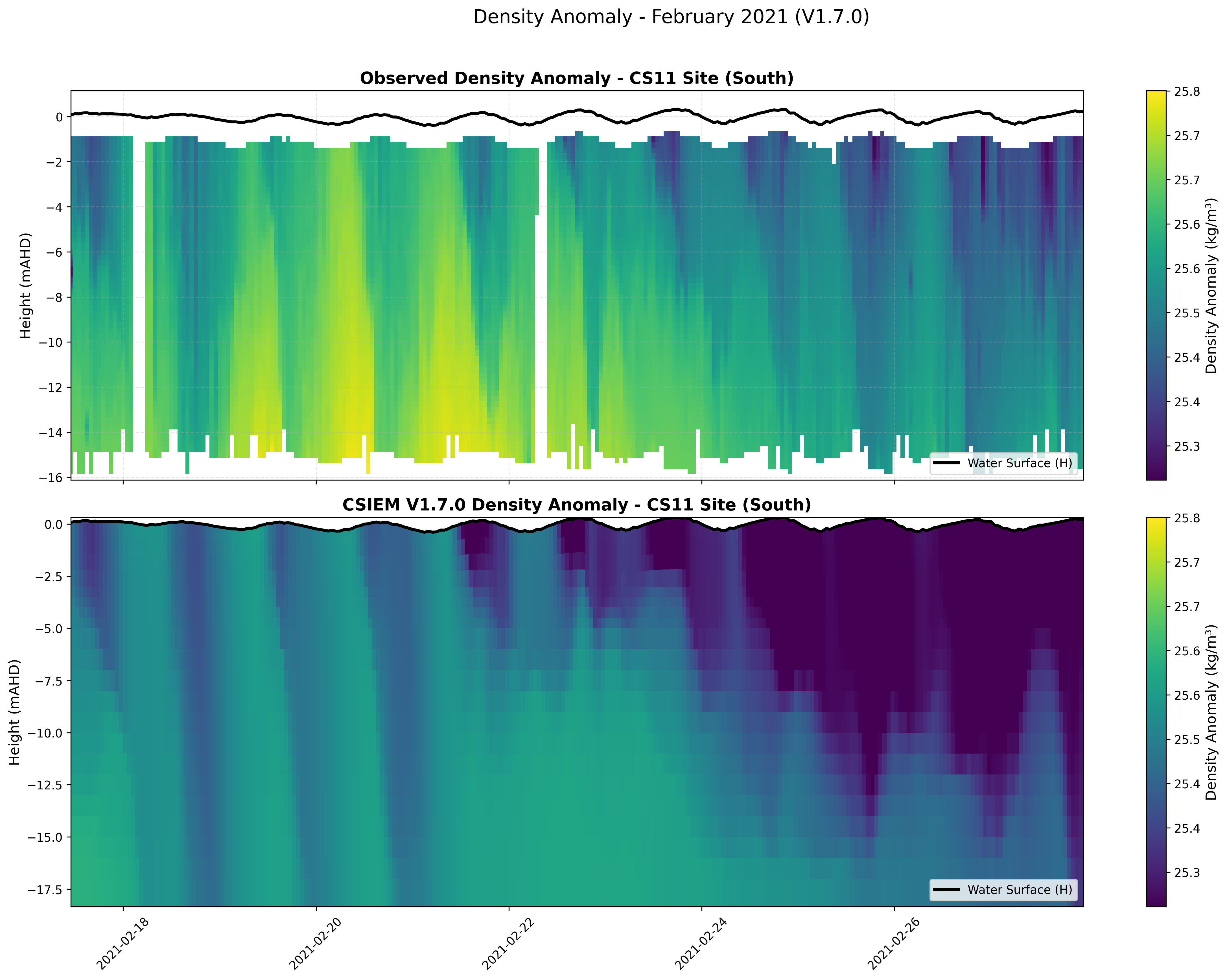

CS11 Site (South) — Density Anomaly — Feb 2021

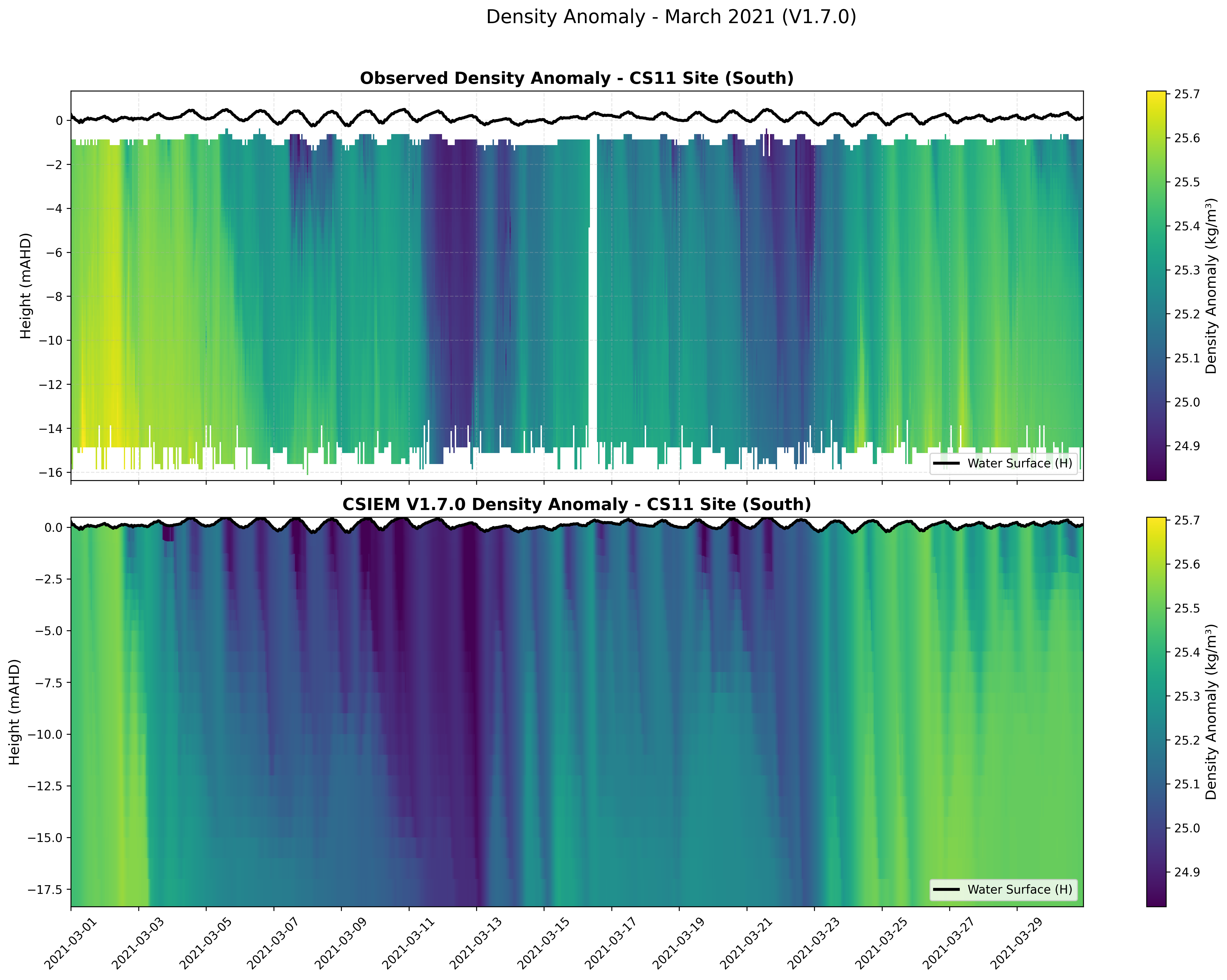

CS11 Site (South) — Density Anomaly — Mar 2021

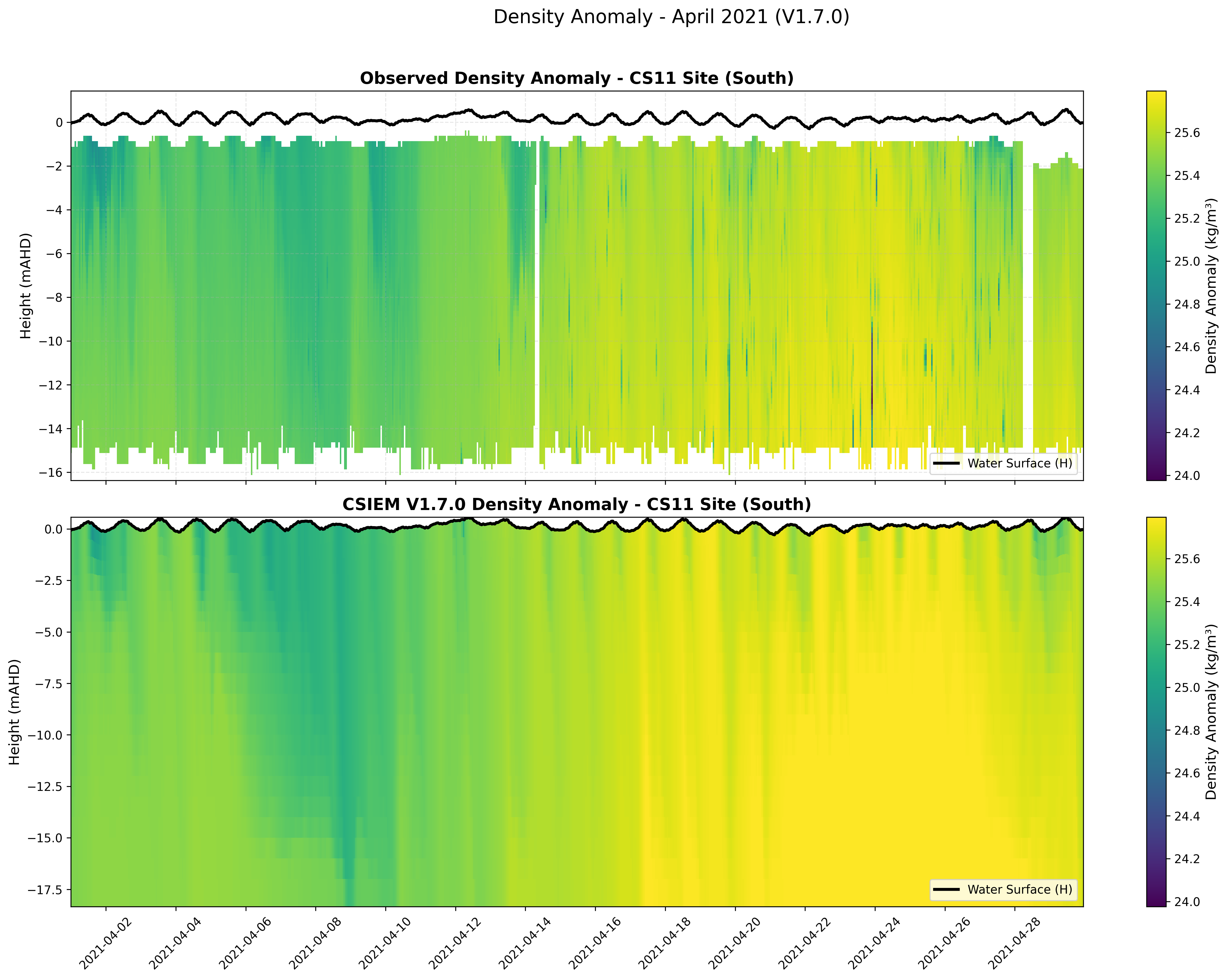

CS11 Site (South) — Density Anomaly — Apr 2021

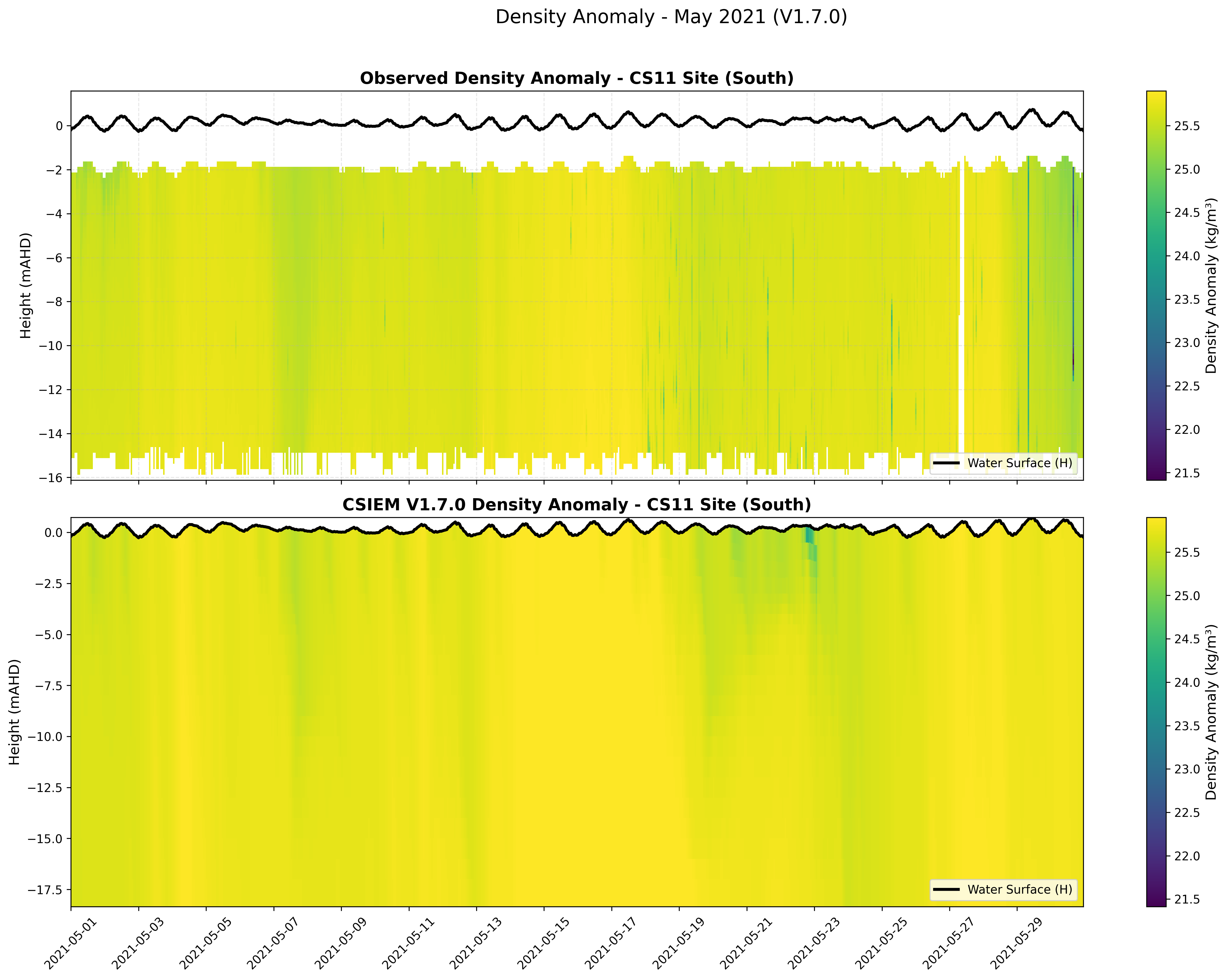

CS11 Site (South) — Density Anomaly — May 2021

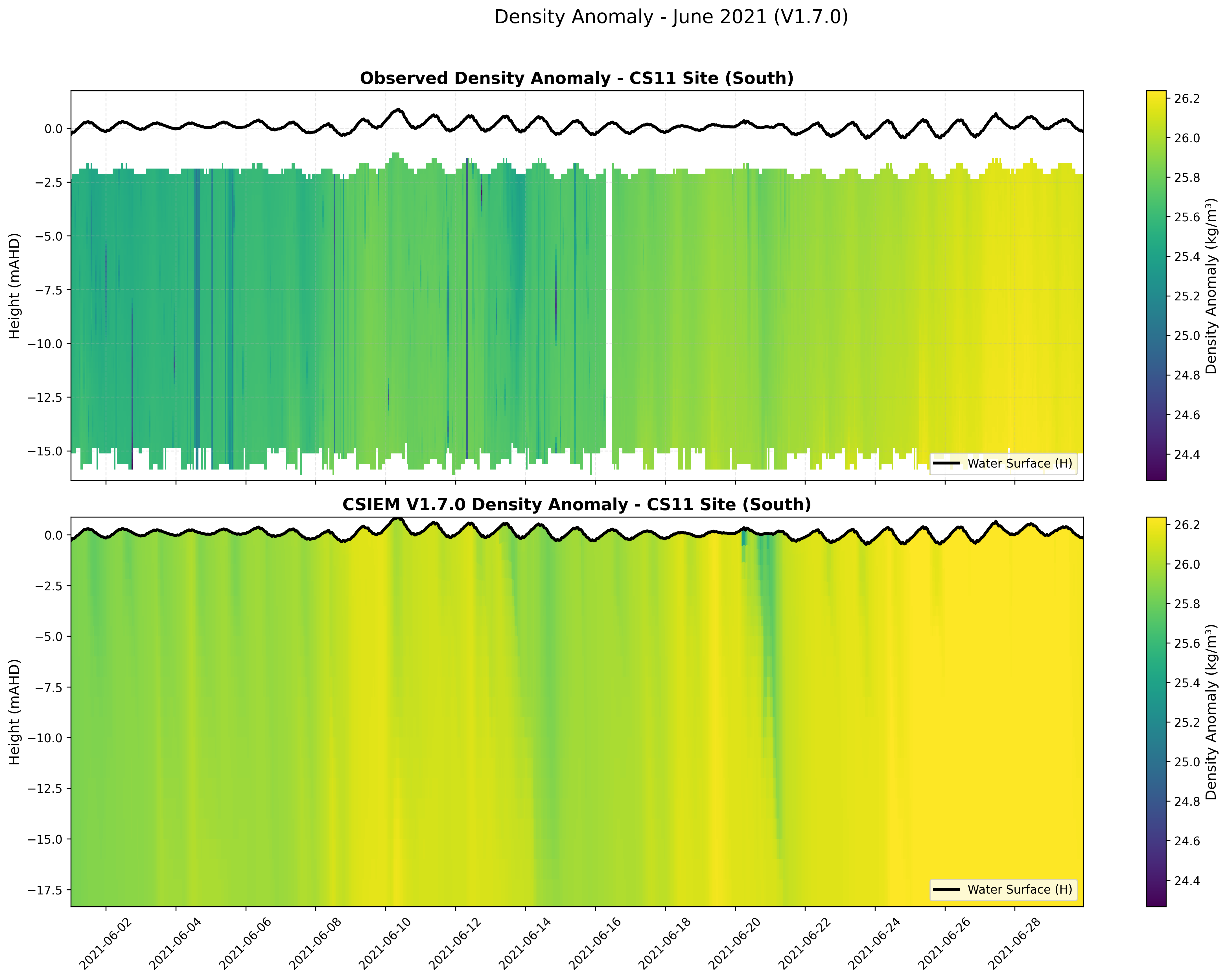

CS11 Site (South) — Density Anomaly — Jun 2021

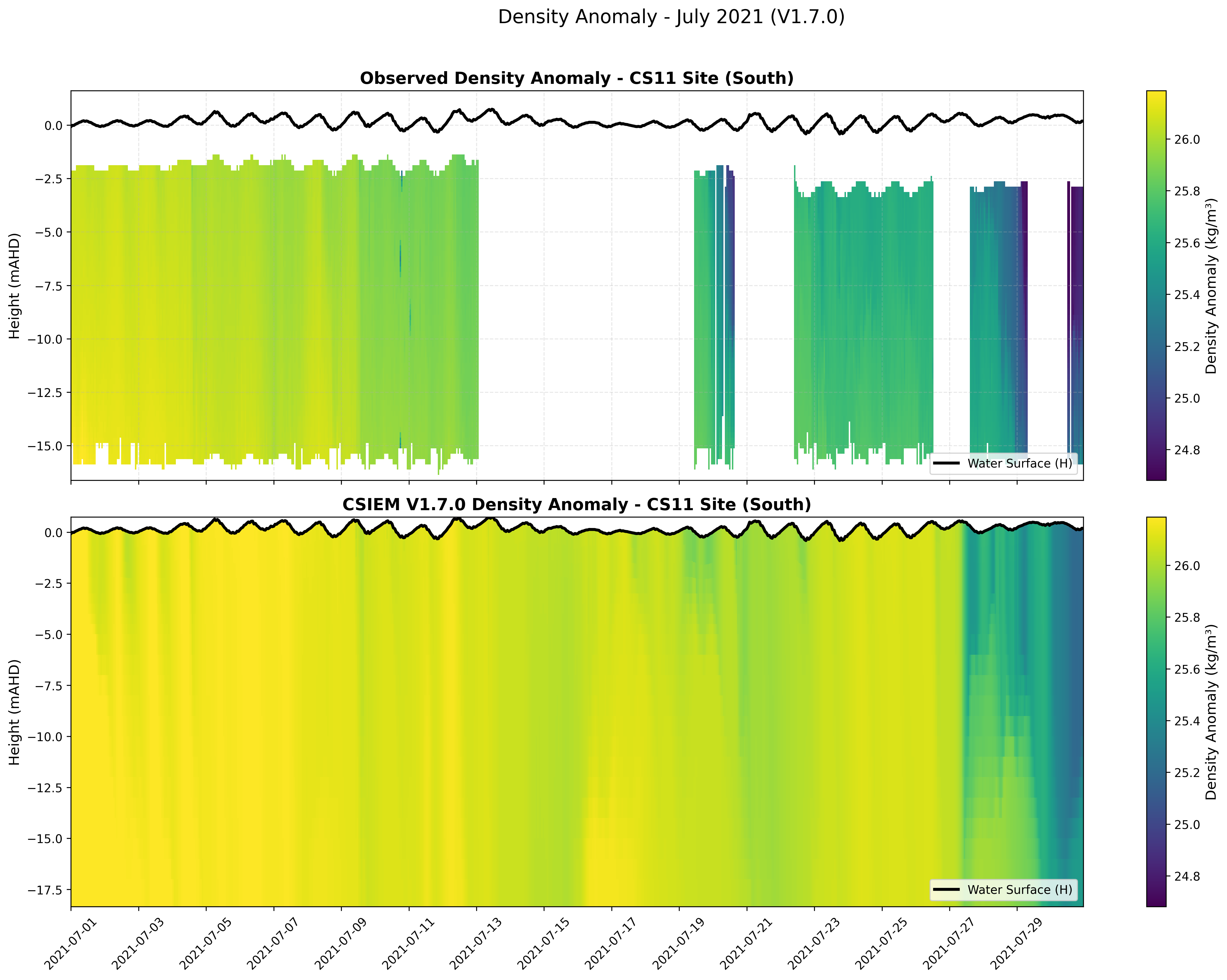

CS11 Site (South) — Density Anomaly — Jul 2021

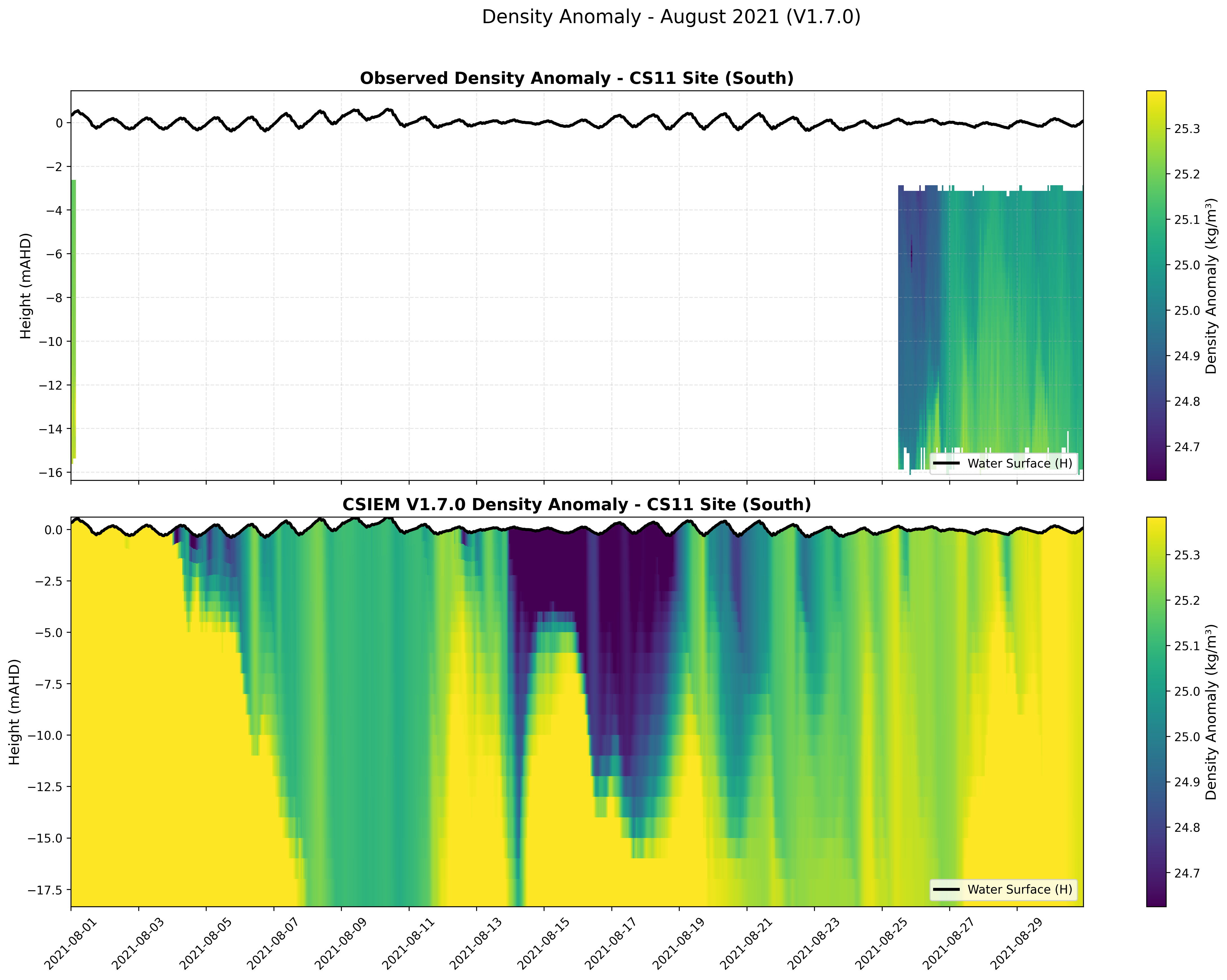

CS11 Site (South) — Density Anomaly — Aug 2021

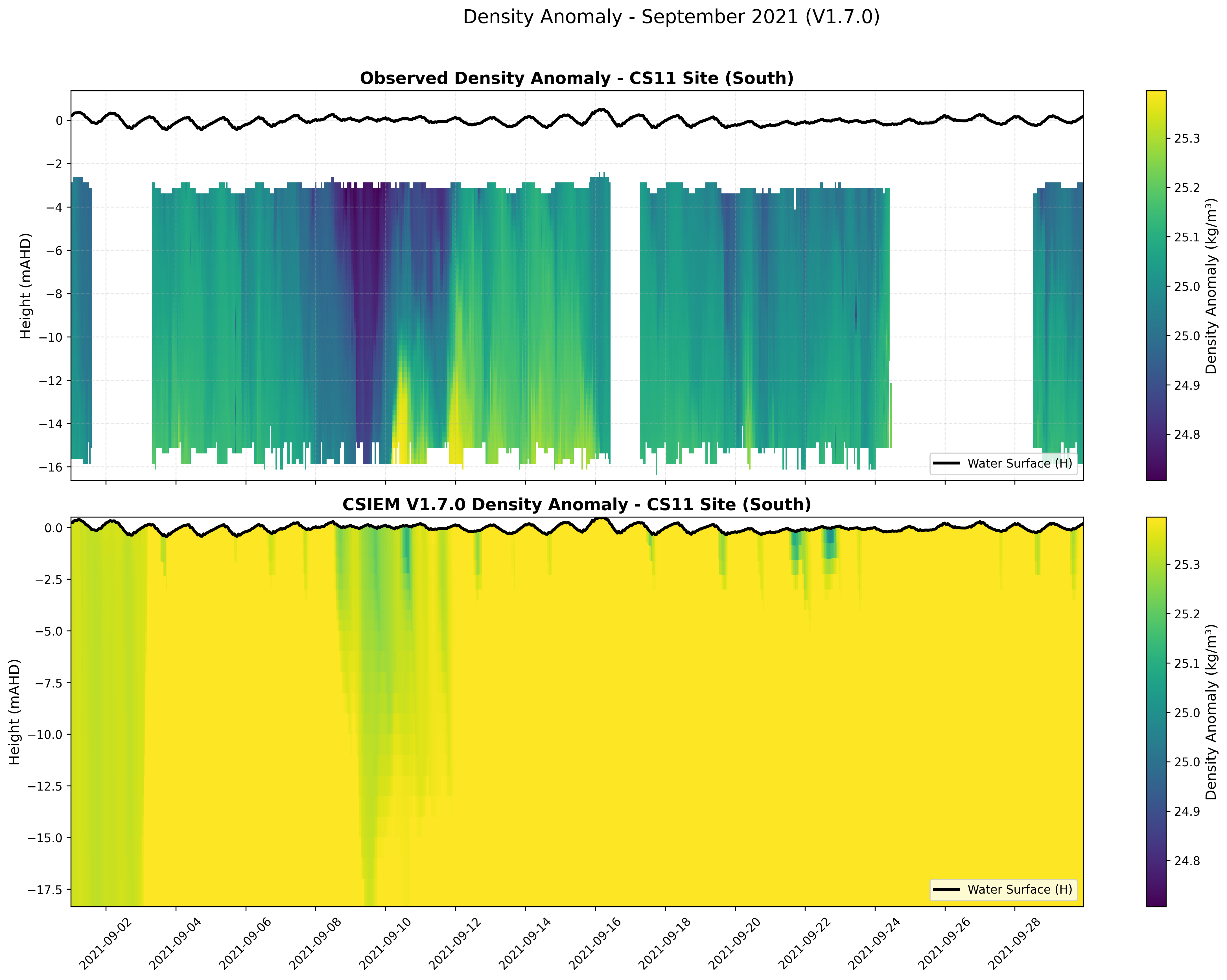

CS11 Site (South) — Density Anomaly — Sep 2021

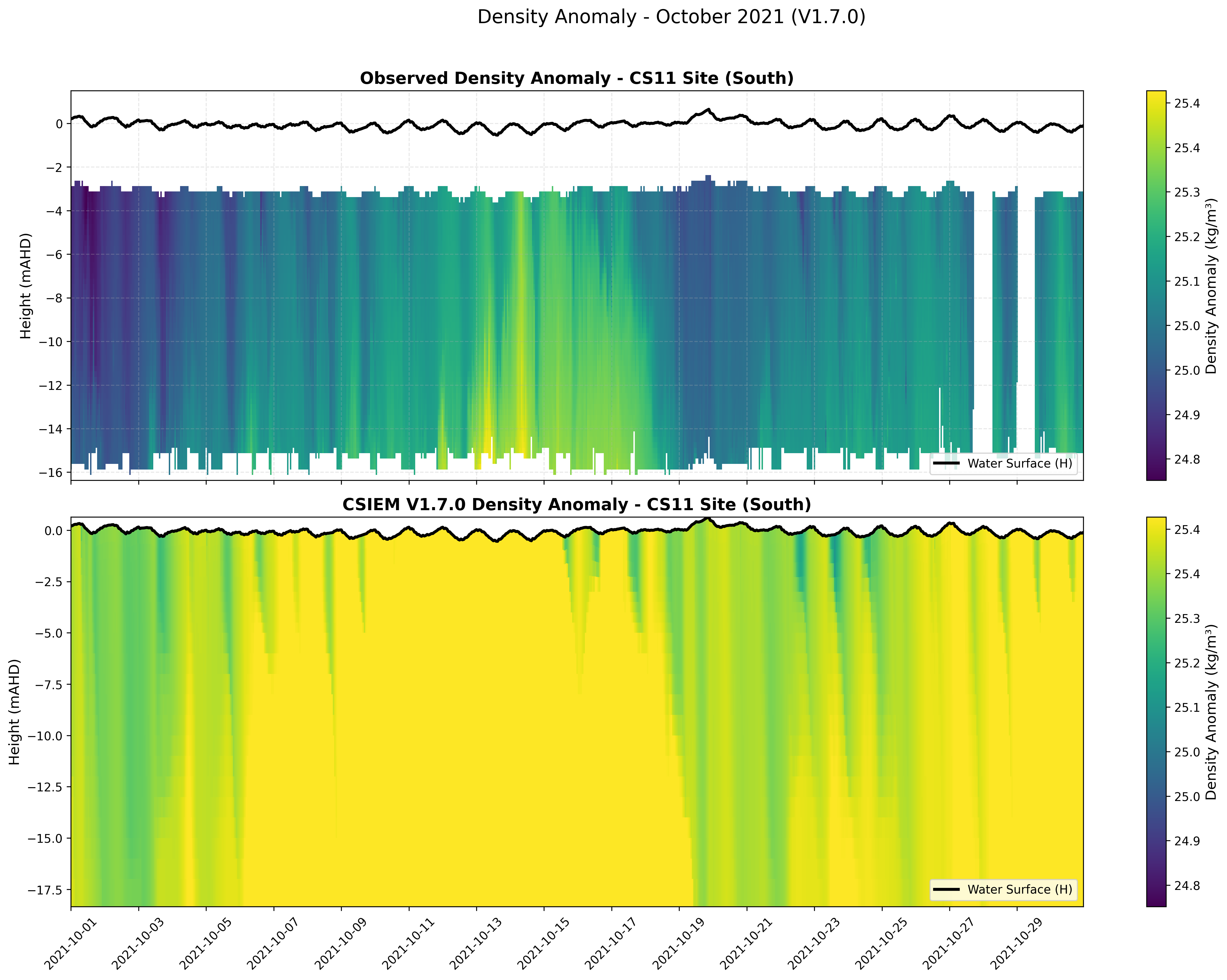

CS11 Site (South) — Density Anomaly — Oct 2021
No data for Nov 2021
No data for Dec 2021

Data Source & Notes

Observed data are sourced from the Western Australian Department of Water and Environmental Regulation (DWER) and comprise four continuously profiling mooring buoys deployed within Cockburn Sound during 2021. These instruments measure vertical profiles of temperature, salinity and other water quality parameters at high temporal resolution.

Mooring data are subject to sensor drift and malfunctions caused by biofouling. Modellers assess these plots alongside field notes supplied by the DWER team. Where a particular dataset is considered unreliable it is not shown here, but remains available within the CSIEM platform for reference.

Further information about the DWER Cockburn Sound monitoring program is available at: estuaries.dwer.wa.gov.au/cockburn-sound
